| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Door 20 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50set/Year |
| Marketing Type:: | New Product 2021 | Feeding Width:: | 300-400mm Or Request |
|---|---|---|---|
| Control System:: | Control System: | Place Of Origin:Place Of Origin:: | Hebei, China |
| Place Of Origin:: | Hebei, China | Warranty:: | 1.5 Years |
| Rolling Thinckness:: | 0.3-2.0mm | ||
| Highlight: | 25m/min door frame roll forming machine,1.8mm door frame roll forming machine,plc door frame making machine |
||

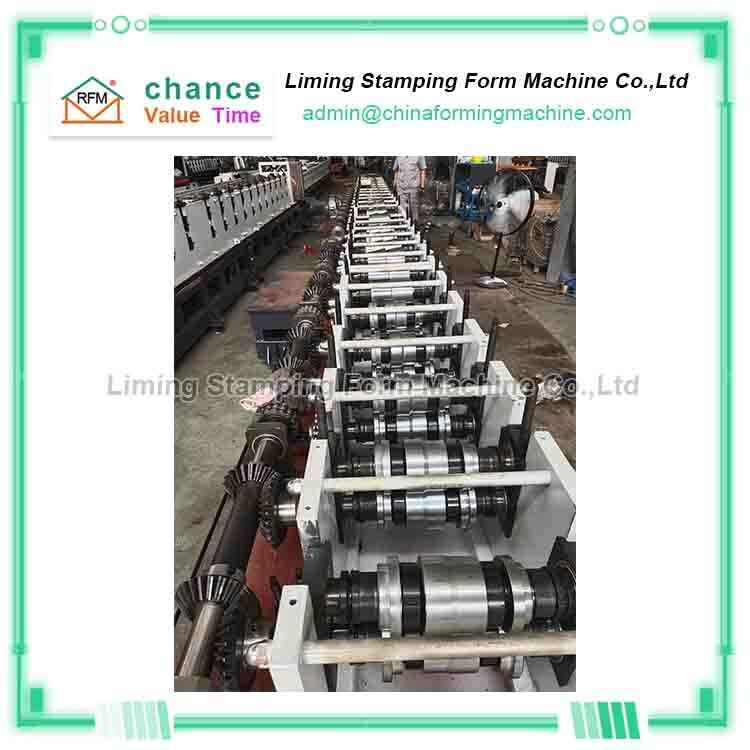

Good industry quality, easy to install, anti-theft door frame forming machine
Liming Pressing Machinery Co., Ltd. has flourished in the door frame industry equipment supply industry, leading development, and scientific and technological achievements. Our company has a large number of technical staff, based on technical strength, focusing on providing good anti-theft door frame forming machines for customers in need. Our company has mature production and processing equipment and packaging production lines, new product development cycle is short, strong ability, high precision, and mature manufacturing technology. Welcome customers in need to come to cooperate.
| Technical parameters of anti-theft door frame | |
| The main purpose | |
| Feeding thickness | 0.8-1.8mm |
| Feeding width | 200-380mm |
| Single piece length | 1000-6000mm |
| Production speed | 0-25m/min |
| monitor rate | 15/22kw |
| plc electric controlsystem | Panasonic/Mitsubishi PLC control system (optional) |
| Encoder | Omron |
| transfer method | Chain/reducer/gear (according to profile thickness) |
| Shear blade material | Gr12MOV |
| Cut type | Die cut |
| Medium plate type | One-piece casting Plate/18mm rear welded middle plate |
| Material of forming roller | Gr12 |
| Spindle material | 45 # steel |
| Type of receiving rack | Light steel receiving rack |
| All the above parameters are for reference only. This anti-theft door molding machine is a customized equipment that needs to be selected according to your version, thickness, raw material and material. | |
The anti-theft door frame forming machine of Liming Pressing Machinery Co., Ltd. has the following advantages:
1. The equipment control of the anti-theft door frame forming machine is PLC control, and several layers of protection are set up during normal production.
2. The body of the anti-theft door frame forming machine is steel welded parts. And it is tempered to remove internal stress and prevent the deformation of the fuselage.
3. Anti-theft door frame forming machine, the frame is cast iron structure, and has been tempered. High strength and long use time.
4. The material of the roll shaft of the anti-theft door frame forming machine is Cr12, and the hardness is HB280 after quenching and tempering.
5. The material of the molding die of the anti-theft door frame molding machine is GCr15, quenched, and hardness: HRC56-62℃.
6. The transmission structure of the anti-theft door frame forming machine is gear box transmission. Each forming frame has a gear box, which can realize long-term, high-strength operation of the equipment and a long service life.
