| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Door 21 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50set/Year |
| Marketing Type:: | New Product 2021 | Feeding Width:: | 300-400mm Or Request |
|---|---|---|---|
| Control System:: | Control System: | Place Of Origin:Place Of Origin:: | Hebei, China |
| Weight:: | 10t | Warranty:: | 2 Years |
| Rolling Thinckness:: | 0.8-2.0mm | ||
| Highlight: | 30m/min door frame forming machine,plc door frame forming machine,30m/min door roll forming machine |
||

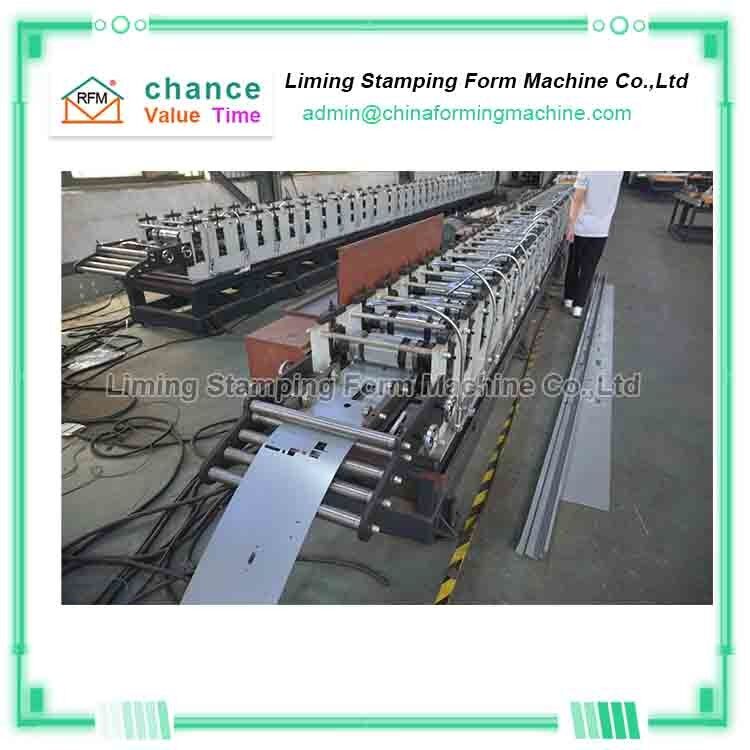

30m/min anti-theft door frame forming machine for building materials supermarket
What is the anti-theft door frame forming machine
The anti-theft door frame model machine is a complete process of uncoiling, leveling, punching, roll forming, and fixed-length shearing with steel strip as the raw material. The whole process does not require manual operation, only the PLC control system is required. Complete the production of anti-theft door frames.
| Technical parameters of anti-theft door frame | |
| The main purpose | |
| Feeding thickness | 0.8-1.8mm |
| Feeding width | 200-380mm |
| Single piece length | 1000-6000mm |
| Production speed | 0-25m/min |
| monitor rate | 15/22kw |
| plc electric controlsystem | Panasonic/Mitsubishi PLC control system (optional) |
| Encoder | Omron |
| transfer method | Chain/reducer/gear (according to profile thickness) |
| Shear blade material | Gr12MOV |
| Cut type | Die cut |
| Medium plate type | One-piece casting Plate/18mm rear welded middle plate |
| Material of forming roller | Gr12 |
| Spindle material | 45 # steel |
| Type of receiving rack | Light steel receiving rack |
| All the above parameters are for reference only. This anti-theft door molding machine is a customized equipment that needs to be selected according to your version, thickness, raw material and material. | |
How to distinguish the low, medium and high configuration of the anti-theft door frame forming machine
1. "Low profile" anti-theft door forming machine's uncoiling system The anti-theft door forming machine's uncoiling system mainly plays a role in helping uncoiling. However, there are often cases where the material roll falls off and the steel belt cannot be braked.
The uncoiling system of the "medium configuration" anti-theft door forming machine is equipped with damping brakes and baffles to ensure that the raw material will not be dragged off.
The uncoiling system of the "high configuration" anti-theft door forming machine will be equipped with a servo device on the basis of the middle configuration to ensure that the uncoiling speed is consistent with the forming speed.
2. The transmission system of the "low profile" anti-theft door forming machine uses chain transmission to ensure the power of the transmission. However, it will be a little difficult to produce thicker raw materials.
The transmission system of the "medium configuration" anti-theft door forming machine generally adopts bevel gear transmission of special materials, which can ensure a high transmission ratio, and the thickness of the production profile will also be limited.
The transmission system of the "high configuration" anti-theft door molding machine is driven by a reducer, which can cope with various thicknesses of raw materials, and the speed has also been further improved.
