| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 4.4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity:: | 8-15m/min | Material Of Blade:: | Cr15Mov,HRC58-62 |
|---|---|---|---|
| After-sales Service Provided:: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support | Thickness:: | 0.3-1.2mm |
| Certification: | CE、BV、ISO | Weight:: | 15T |
| Dimension(L*W*H):: | 9500*1500*1200mm | Core Components:: | PLC |
| Highlight: | 8m/min liming roll forming machine,plc solar photovoltaic bracket roll forming machine,15m/min solar photovoltaic bracket roll forming machine |
||

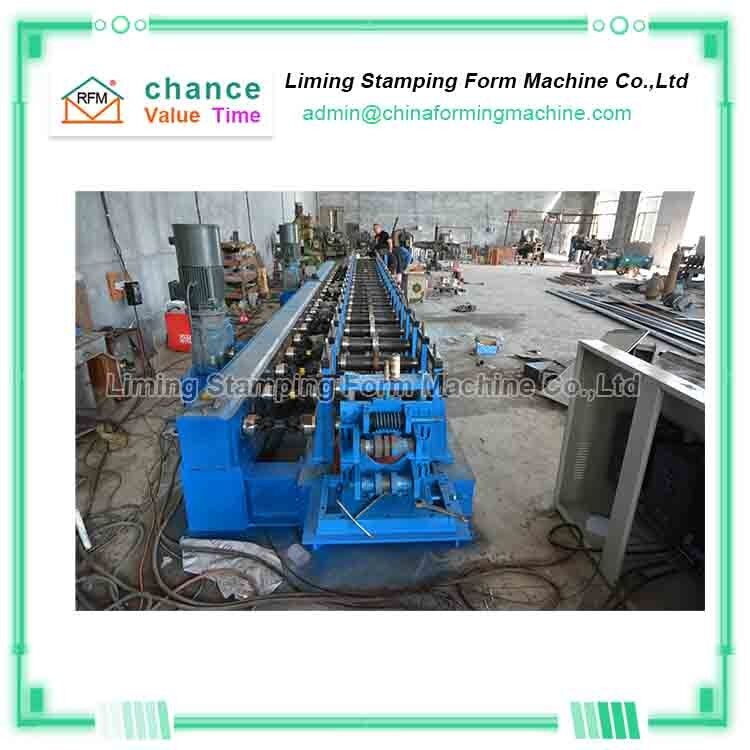

quick punching solar photovoltaic bracket roll forming machine
What is a photovoltaic support?
Solar photovoltaic brackets are special brackets designed for placing, installing and fixing solar panels in solar photovoltaic power generation systems. The characteristics of solar photovoltaic brackets are no welding, no drilling, 100% adjustable, and 100% reusable.
How are solar photovoltaic brackets produced?
The general material of the solar photovoltaic bracket is made of carbon steel and stainless steel surface for hot-dip galvanizing, and then continuously cold-rolled through the forming wheel of the solar photovoltaic bracket roll forming machine to produce the photovoltaic bracket product.
What is the forming process of the solar photovoltaic stent roll forming machine?
The solar photovoltaic stent roll forming machine is composed of uncoiling-punching-feeding-forming host-fixed-length cutting-receiving, and other production processes. The whole machine is controlled by a PLC control system. You only need to fill in the data. Can produce, can help you save a lot of manpower.
| No. | Item | Description |
| 1 | Products’ sizes | According to customer’s profile drawing |
| 2 | Processing material | GI |
| 3 | Processing thickness | 1.6-2.0MM |
| 4 | Main motor power of roll forming machine | 55kw |
| 5 | Power of hydraulic station for cutting device | 7.5kw |
| 6 | Quantity of roller stations | 22 |
| 7 | Production speed | 8-10m/min |
| 8 | Diameter of shafts | Φ80mm |
| 9 | Material of rollers | Cr12 steel with vacuum heat treatment HRC57°-60° |
| 10 | Material of shafts | 45# steel quenched and tempered |
| 11 | Driven method | Chain transmission |
| 12 | Brand of PLC | Delta |
| 13 | Cut mode | Hydraulic profile cutting for Pole and Rafter profile & fly-saw cutting for purlin profile |
| 14 | Power supply | 380V 50HZ 3Phases or at buyer’s requirement |
At the same time, the solar photovoltaic stent roll forming machine also adopts a roll punching method. The punching speed is changed from the original forming host according to the speed of the punch to the speed adjustment of the punch according to the forming host, thus realizing high-speed and efficient production. To help you quickly generate revenue
