| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 5.0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity:: | 8m-15/min | Material Of Blade:: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| Dimension(L*W*H):: | 9500*1500*1400mm | Thickness:: | 0.3-1.2mm |
| Warranty:: | 1.5 Year | Voltage:: | 380V/220V |
| Weight:: | 9T | ||
| Highlight: | photovoltaic support small roll forming machine,220v small roll forming machine,220v liming roll forming machine |
||

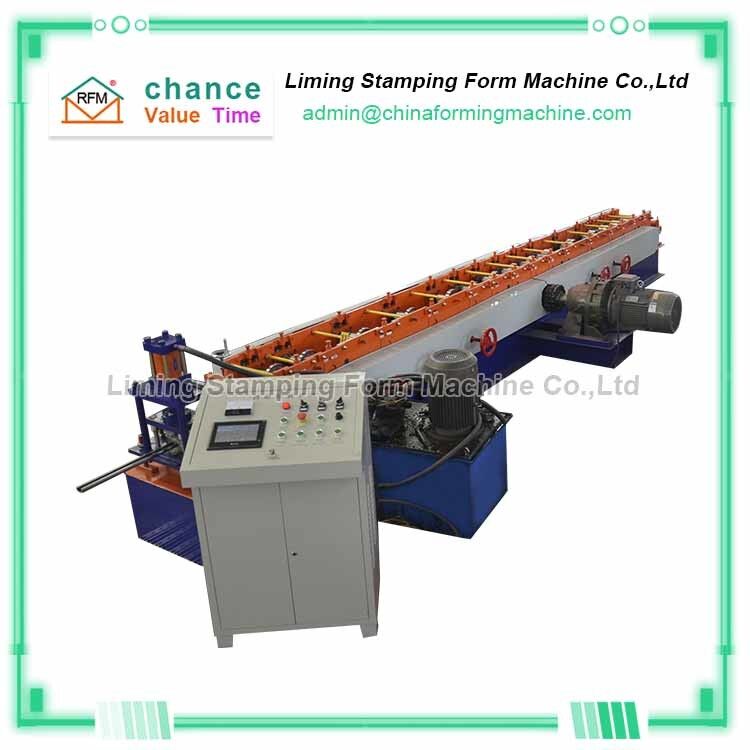

Optional high-yield photovoltaic support forming machine
Overview of the structure of the photovoltaic support forming machine
Photovoltaic stent forming machine composition; unwinding device, servo feeding, punching device, forming host, fixed-length cutting, and receiving device.
Equipment performance
Sheet thickness: 1.5~2.5 mm
Production line speed: 0-30m/min
Host molding speed: 0-30m/min
Total installed capacity: 35.5kw
Technical parameters of Optional high-yield photovoltaic support forming machine
| Item | Parameters | |
| According to your requirements | ||
| Model | Type | PPGI, GI, CR , Steel Coil |
| Thickness(mm) | 1.0-3.0 mm | |
| Yield strength(Mpa) | 345 | |
| Forming speed(m/min) | 0-25 | |
| Punching Device | 1 Unit | |
| Roller Stations | About 17 stations; According to the final design | |
| Roller material | GCR15 steel, coated with chrome | |
| Roller driven type | Chain transmission | |
| Control System | PLC (Panasonic) as list in the note | |
| Operation type | Touch screen + button | |
| Hydraulic system pressure( MPa ) | 25 | |
| Hydraulic motor power ( KW ) | 5.5 | |
| Main motor power(KW) | 22 | |
| Shaft Material and DIA | 80 mm, material is 45 # forge steel | |
| Cutting Way | Tracking hydraulic mould cutting | |
| Electric Source | 380V, 50HZ,3 phase; According to customer’s require | |
| Way Of Drive | Chain transmission | |
| Dimension(L*W*H) | Forming Section about 9m*0.8m*1.2m |
|
The photovoltaic bracket forming machine produced by Liming Pressing Machinery Co., Ltd. has the following advantages:
1. The equipment control of the photovoltaic support forming machine is PLC control, and multiple safety protections are set up during normal production, which can help you save labor costs and also help you achieve a safe and high-level production
2. The body of the photovoltaic support forming machine tool is a steel plate welded part. And it is tempered to eliminate internal stress and avoid deformation of the fuselage.
3. The frame of the photovoltaic support forming machine is a cast iron structure and has been tempered. High strength and long service life.
4. The material of the roll shaft of the photovoltaic support forming machine is 40Cr, and the hardness is HB280 after quenching and tempering. To
5. The material of the molding die of the photovoltaic stent molding machine is GCr15, quenched, and hardness: HRC56-62℃. To
6. The transmission structure of the photovoltaic support forming machine is gear box transmission. Each forming frame has a gear box, which can ensure the equipment overtime, high-strength operation, and long service life.
7. The punching device of the photovoltaic support can be equipped with roll punching, which can realize the adjustment of the punching speed according to the forming speed, so as to maximize the production speed of the photovoltaic support
