| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 5.4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity: | 10m/min | Brand Name: | LiMing |
|---|---|---|---|
| Weight: | 4500kg | Rolling Thinckness: | 1.6-2.0mm |
| Certification: | CE、BV、ISO | Cutting Blade Material: | Cr12 Frequency Quenching |
| Power Supply: | 380V 50HZ 3Phases Or At Buyer’s Requirement | ||
| Highlight: | cold formed steel machine 20m/min,liming cold formed steel machine,10m/min steel roll former |
||

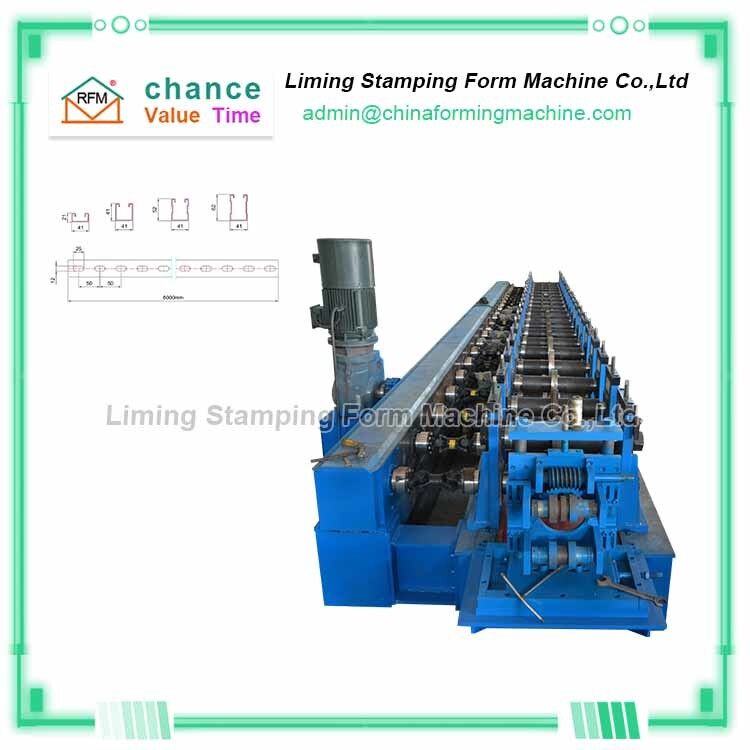

Solar photovoltaic mounting machine 10-20m/min is simple and easy to operate
We can provide solar photovoltaic panel sellers in the solar industry with the solar photovoltaic mounting machines required in the assembly process of solar photovoltaic panels. We have been engaged in the design, production and research and development of solar photovoltaic mounting machines for 25 years. We can provide solar photovoltaic panel mounting cold bending machines with higher cost performance and stronger carrying capacity. Our professional design team will tailor a machine with a feed thickness that meets your expectations to meet your high requirements for the load-bearing capacity of solar photovoltaic panels.
| Processing thickness | 1.6-2.0MM |
| Quantity of roller stations | 22 |
| Production speed | 8-10m/min |
| Diameter of shafts | Φ80mm |
| Material of rollers | Cr12 steel with vacuum heat treatment HRC57°-60° |
| Material of shafts | 45# steel quenched and tempered |
| Driven method | Chain transmission |
| Brand of PLC | Delta |
| Cut mode | Hydraulic profile cutting for Pole and Rafter profile & fly-saw cutting for purlin profile |
| Power supply | 380V 50HZ 3Phases or at buyer’s requirement |
At the same time, the solar photovoltaic mounting machine developed by our company adopts imported PLC control, LCD touch screen, and man-machine interface. The human interacts with the PLC. The operator setting program can run automatically, and we have also installed a real-time monitoring system for the solar photovoltaic mounting machine, which can help the operator control and modify the parameters, and can achieve the purpose of real-time monitoring of equipment status parameters and fault indications.
The solar photovoltaic mounting machine is divided into two operating modes: manual and automatic. In manual mode, it can be operated as a stand-alone machine, which is convenient for maintenance; in automatic mode, full production operation is carried out. In order to help you in safe production, we also provide solar photovoltaic mounting machines. The emergency stop button is convenient to deal with emergencies and ensure the safety of equipment and operators.
