| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Slitting 5.8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300set/Year |
| Warranty: | 1 Year | Thickness Of Sheet(mm)ss: | 0.3mm-2.0mm |
|---|---|---|---|
| Dimension(L*W*H): | 20M*2M*1.60M | Certification: | CE BV STV ISO, CE BV STV ISO |
| Weight Of The Machine: | 7500KGS-9500KGS | Voltage: | 220V/380V |
| Cutting Width (mm): | 400 - 600mm | COLOR:: | Request |
| Leveling Precision(±mm/m): | 0.5±mm/m | ||
| Highlight: | liming steel coil slitting line,0.3mm steel coil slitting line,220v steel coil slitting machine |
||
Hot-selling coil production line with accurate dimensions
The coil production line is a high-precision production line used to cut large coils of metal into multiple narrower coils.

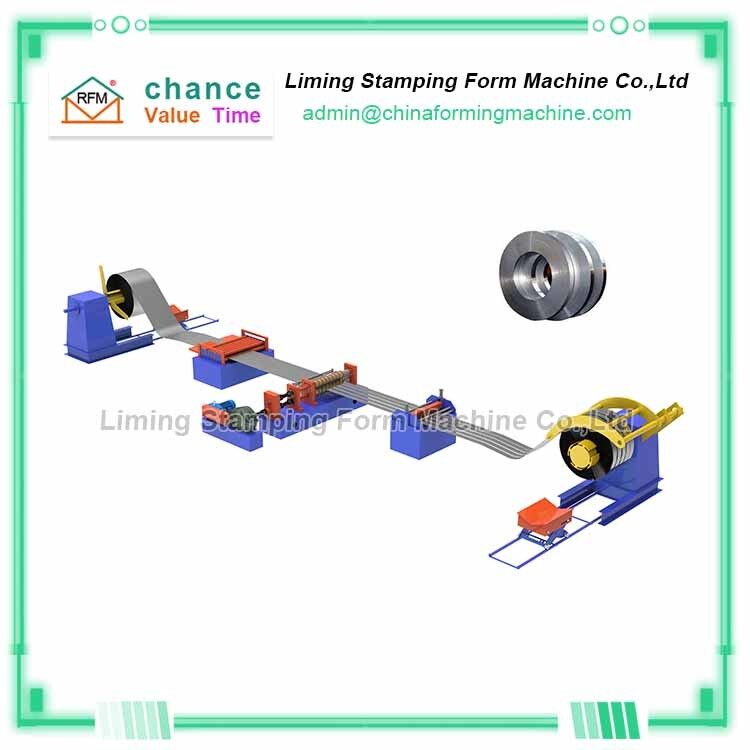

The coil production line is composed of an uncoiler, a leveling machine, a slitting machine, and a winder. The whole machine is controlled by the PLC electronic control system and separately controlled, which can help you quickly produce coils of different sizes.
Technical Parameters of Hot-selling coil production line with accurate dimensions
| No. | Item | Specification |
| 1 | Formed Material | PPGI PPGL GI GL |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V /220V |
| 4 | Thickness of sheet (mm) | 0.3-2.0mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | about 3500mmx1300mmx1400mm |
| 8 | Speed | 15-20m/min |
| 9 | Diameter of shaft | 80mm |
| 10 | Weight of the Machine | 7500KGS-9500KGS |
| 11 | Material of rollers | CR12 |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubishi |
| 14 | Total power (kw) | 11Kw |
| 15 | Power of hydraulic system | 4Kw |
| 16 | Power of main molding core | 4Kw |
| 17 | Rollers' material | 45# steel with chromn on the surface |
| 18 | Wall thickness of main forming machine | 16mm |
The coil production line does not require customized production. Because the coil production line produced by Liming Company can be replaced and adjusted according to the coil size you need, it can be positively produced, which can help you save the cost of buying other types of coil production lines.
Regarding the accuracy of the coil production line and after-sales problems, you can rest assured that the coil production lines produced by Liming Company are designed and assembled by our team of engineers with 25 years of design and manufacturing experience, and the assembled coil production lines are all through ours. The QA team conducts inspections to ensure the high precision of the coil production line. At the same time, we will also provide you with 24 sales and after-sales services to solve all your problems about the coil production line. We look forward to working with you.
