| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM- Hanging5.8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Can Formed Material: | PPGI,GI,AI | Warranty: | 18 Months |
|---|---|---|---|
| Total Power: | 20steps | Production Capacity: | 10-30m/min |
| Production Experience: | 2 Years | Roller Material: | 45# Steel |
| Rolling Thinckness: | 0.5-1.2mm | Voltage:Voltage: | 380Vor220V |
| Cutting Model: | Hydraulic Profile Cutting | ||
| Highlight: | ppgi wall panel machines,30m/min wall panel machines,0.5mm wall panel machines |
||

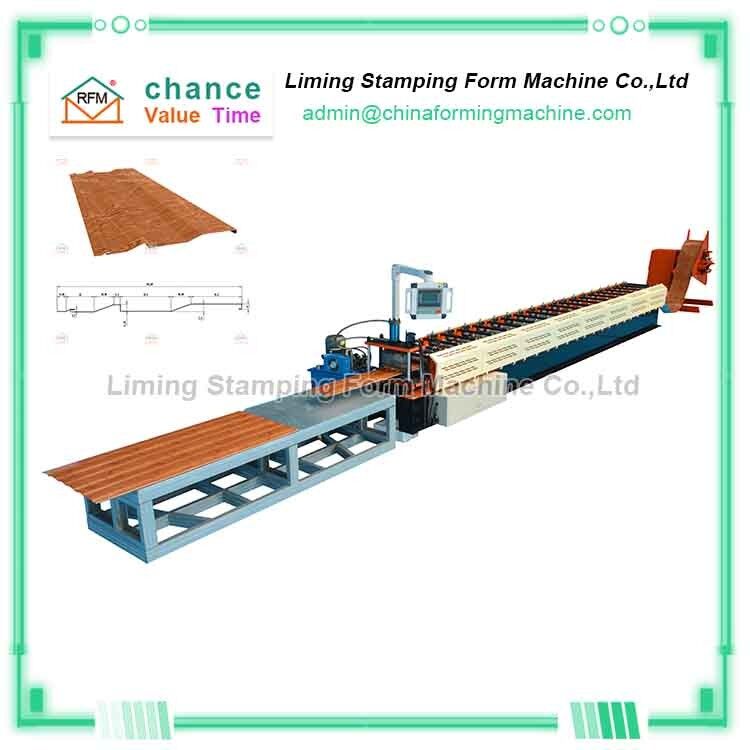

A New Generation Of Exterior Wall Steel Plate And Tile Making Machinery 30m/Min
Exterior wall steel plate tile making machinery is equipment for producing exterior wall decorative panels. Exterior wall hanging panels are a construction method that hangs the panels on the outside of the wall through dry hanging and other construction methods to achieve decoration or heat preservation effects. At the same time, it must have the basic properties of anti-corrosion, anti-aging, non-radiation, fire prevention, insect resistance, etc. We can provide exterior wall steel plate and tile making machinery
Main parameters of A New Generation Of Exterior Wall Steel Plate And Tile Making Machinery 30m/Min
| 1 | Can Formed Material | PPGI,GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380Vor220V |
| 4 | Thickness of sheet (mm) | 0.5-1.2mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 6000mmx1500mmx1600mm |
| 8 | Speed | 10-30m/min |
| 9 | Diameter of shaft | 60mm |
| 10 | Weight of the Machine | 3000KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 7kw |
| 15 | Power of hydraulic system | 3kw |
| 16 | Power of main molding core | 4kw |
The exterior wall steel plate and tile making machinery adopts digital PLC computer programming control, automatic length setting, automatic cutting, and touch screen operation, simple and convenient
, The outer wall hanging board produced by the outer wall steel plate and tile machine has a neat section and a standard plate shape. It can be sold or installed directly, which can help you quickly open the market.
The exterior wall steel plate tile making machine has reasonable design, convenient operation and large motor power. At the same time, the exterior wall steel plate tile making machine is also equipped with an industrial control frequency conversion system, which makes the machine run more smoothly and greatly improves the production speed, which can help you Increase productivity
