| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity: | 10-20m/min | Material Of Blade: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support | Control System: | PLC |
| Certification: | CE、BV、ISO | Power: | 15.5kw |
| Dimension(L*W*H): | 10*1.5*1.2m | Weight: | 10T |
| Warranty: | 1.5 Years | ||
| Highlight: | photovoltaic bracket steel roll formers,25m/min steel roll formers,liming custom roll forming machine |
||

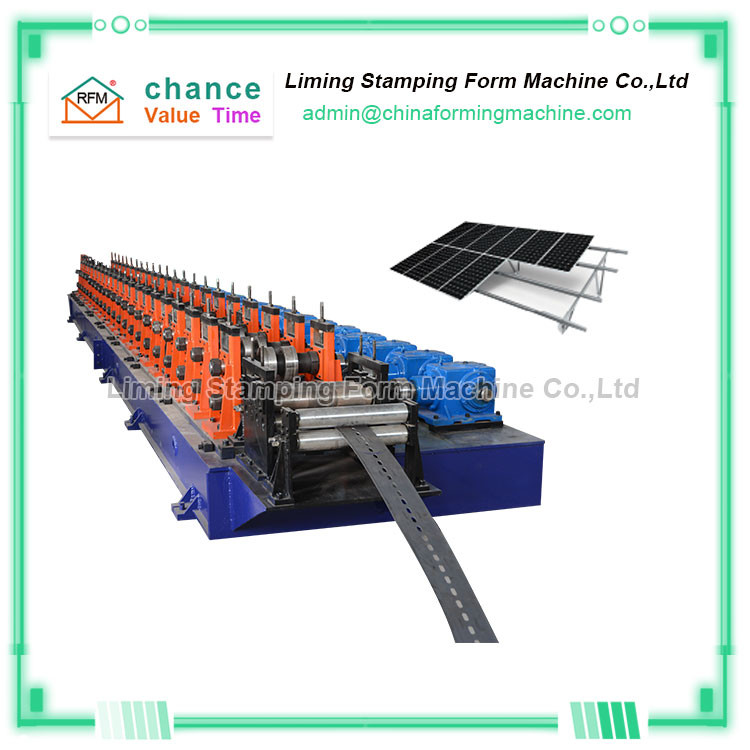

30mm casting medium plate 25m/min photovoltaic bracket forming machine
Liming Forming Machinery Co., Ltd. has been 25 years since its establishment. It has been committed to the research and development of roll forming machines for photovoltaic bracket forming equipment. Liming Company is dedicated to providing new products at home and abroad through advanced technology, high-tech equipment and preferential prices. Old customers provide high-quality photovoltaic support forming machines, which have been well received by customers
Technical parameters of 30mm casting medium plate 25m/min photovoltaic bracket forming machine
| Machinable Material : | A) Galvanized Steel | Thickness(MM): 2-3mm |
| B) PPGI | ||
| C) Carbon steel | ||
| Yield strength : | 250 - 550 Mpa | |
| Tensil stress : | G250 Mpa-G550 Mpa | |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system : | Hydraulic punching station | * Punching press (Optional) |
| Forming station : | According to your profile drawings | |
| Main machine motor brand : | Shanghai Dedong (Sino-Germany Brand) | * Siemens (Optional) |
| Driving system : | Chain drive or Gear drive | * Gearbox drive (Optional) |
| Machine structure: | Cantilever type | * Forged Iron station (Optional) |
| Forming speed : | 10-20 (M/MIN) | * Or according to your profile drawings |
| Rollers’ material : | GCr 15 | * SKD-11 (Optional) |
| Cutting system : | Post-cutting | * Pre-cutting (Optional) |
| Frequency changer brand : | Yaskawa | * Siemens (Optional) |
| PLC brand : | Panasonic | * Siemens (Optional) |
| Power supply : | 380V 50Hz 3ph | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
Process flow of photovoltaic support forming machine:
Uncoiling-Punching-Feeding-Roll Forming-Fixed Length Shearing-Forming Rewinding
The whole machine is controlled by PLC computer programming, and only needs to fill in the data to directly produce.
Features of Photovoltaic Mounting Machine:
Photovoltaic bracket forming machine uncoiling device: electric uncoiling, the uncoiling speed can be consistent with the forming speed, and there will be no deviation or slippage of raw materials.
Transmission device of the photovoltaic support forming machine; Siemens motor drives the reducer to ensure sufficient power for the photovoltaic support forming machine
Shearing device of photovoltaic support forming machine: We adopt the chase-cutting flying saw to cut, which can deal with products of different thicknesses
The middle plate of the photovoltaic support forming machine: We are equipped with a 30mm thick independent cast middle plate, which has strong load-bearing capacity and stable production speed.
