| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity: | 10-60m/min | Material Of Blade: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support | Control System: | PLC |
| Certification: | CE、BV、ISO | Power: | 15+7.5KW |
| Dimension(L*W*H): | 10*1.5*1.2m | Weight: | 10T |
| Warranty: | 1.5 Years | ||
| Highlight: | roll former photovoltaic mounting machine,reducer drive roll former,photovoltaic mounting rollformers |
||

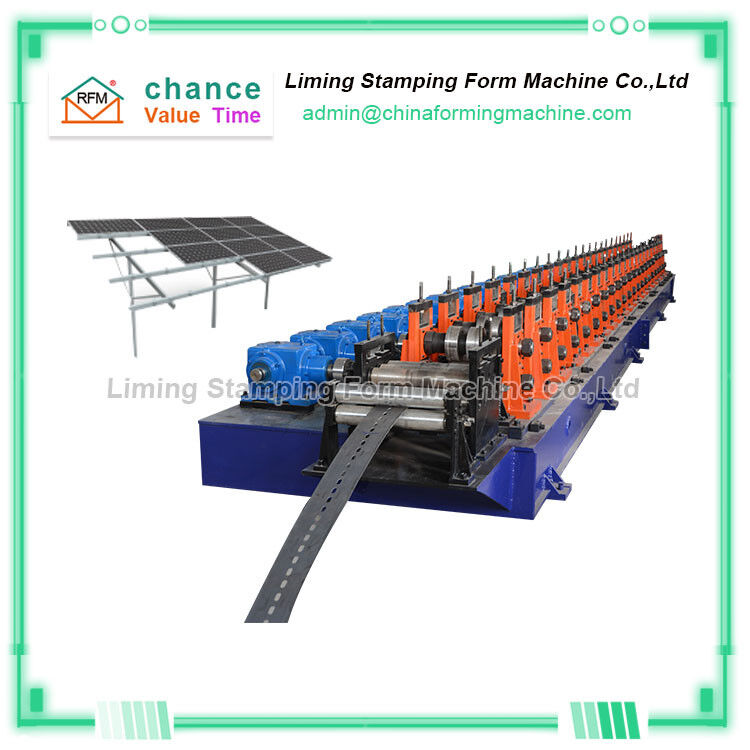

380V 50Hz 3ph 20m/min photovoltaic mounting machine reducer drive
With the emergence of the vitality of the photovoltaic support market, cold-formed forming technology has been widely used due to its energy-saving, environmentally-friendly, and high-efficiency features. Seismic support products are also used in construction, bridges, pipe corridors, culverts, vehicle manufacturing, supermarkets, storage, and containers. It is widely used in many industries such as production, machinery manufacturing, and has played a huge role. If you need to produce photovoltaic supports, we can provide photovoltaic supports
Technical parameters of 380V 50Hz 3ph 20m/min photovoltaic mounting machine reducer drive
| Machinable Material : | A) Galvanized Steel | Thickness(MM): 2-3mm |
| B) PPGI | ||
| C) Carbon steel | ||
| Yield strength : | 250 - 550 Mpa | |
| Tensil stress : | G250 Mpa-G550 Mpa | |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system : | Hydraulic punching station | * Punching press (Optional) |
| Forming station : | According to your profile drawings | |
| Main machine motor brand : | Shanghai Dedong (Sino-Germany Brand) | * Siemens (Optional) |
| Driving system : | Chain drive or Gear drive | * Gearbox drive (Optional) |
| Machine structure: | Cantilever type | * Forged Iron station (Optional) |
| Forming speed : | 10-60 (M/MIN) | * Or according to your profile drawings |
| Rollers’ material : | GCr 15 | * SKD-11 (Optional) |
| Cutting system : | Post-cutting | * Pre-cutting (Optional) |
| PLC brand : | Panasonic | * Siemens (Optional) |
| Power supply : | 380V 50Hz 3ph | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
Features of photovoltaic mounting machine:
Photovoltaic mounting machine production speed is fast: we use a rotary punching machine to increase the punching speed to the greatest extent, and we are also equipped with a Siemens motor to drive the reducer to ensure sufficient power for the photovoltaic mounting machine, which can reach 40m/min Production speed.
Photovoltaic mounting machines provide customers with one-year warranty and lifetime warranty services: we will back up the files of your machine parts. If you encounter parts that need to be replaced after long-term use, we will have the corresponding personnel come to repair them.
