| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 10.30-4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity: | 50m/min | Material Of Blade: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support | Control System: | PLC(import Brand) |
| Certification: | CE、BV、ISO | Power: | 15.5+7.5KW |
| Thickness: | 2-3mm | Weight: | 15T |
| Warranty: | 2 Years | ||
| Highlight: | rapid punching cold formed steel machine,photovoltaic bracket cold formed steel machine,photovoltaic bracket manufacturing rollformers |
||

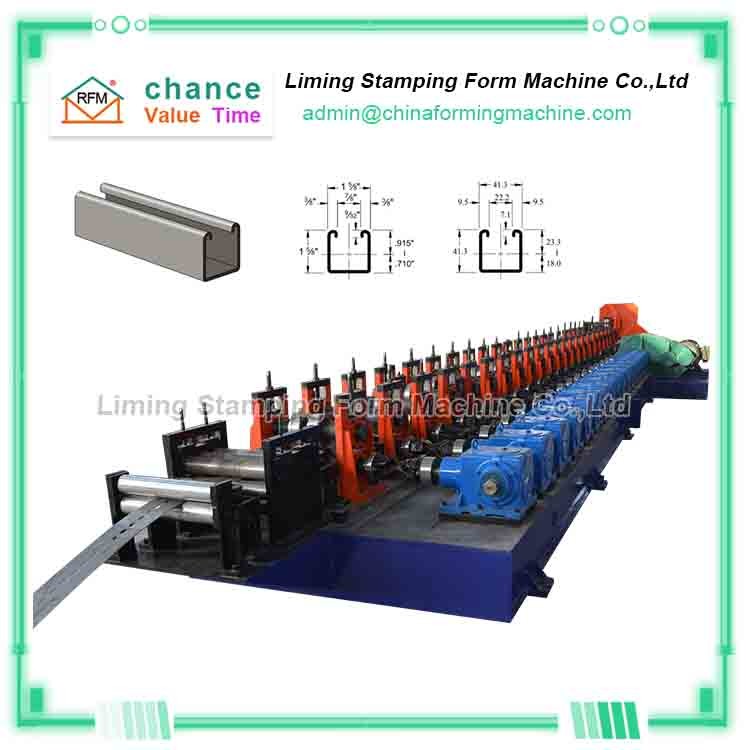

Gr12 Forming Wheel For Rapid Punching 50m / Min Photovoltaic Bracket Manufacturing Machine
Photovoltaic support molding is a device used to produce photovoltaic support products, which are widely used in various fields. Especially suitable for mass production. Compared with the bending process, the production efficiency of roll forming is high, the product size is consistent, and the product size can be accurate and beautiful, and the photovoltaic support product can be directly installed after the production is completed.
Technical parameters of Gr12 Forming Wheel For Rapid Punching 50m / Min Photovoltaic Bracket Manufacturing Machine
| Machinable Material : | A) Galvanized Steel | Thickness(MM): 2-3mm |
| B) PPGI | ||
| C) Carbon steel | ||
| Yield strength : | 250 - 550 Mpa | |
| Tensil stress : | G250 Mpa-G550 Mpa | |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system : | Hydraulic punching station | * Punching press (Optional) |
| Forming station : | According to your profile drawings | |
| Main machine motor brand : | Shanghai Dedong (Sino-Germany Brand) | * Siemens (Optional) |
| Driving system : | Chain drive or Gear drive | * Gearbox drive (Optional) |
| Machine structure: | Cantilever type | * Forged Iron station (Optional) |
| Forming speed : | 50(M/MIN) | * Or according to your profile drawings |
| Rollers’ material : | GCr 12 | * SKD-11 (Optional) |
| Cutting system : | Post-cutting | * Pre-cutting (Optional) |
| PLC brand : | Panasonic | * Siemens (Optional) |
| Power supply : | 380V 50Hz 3ph | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
Advantages of photovoltaic bracket forming machine
1. Photovoltaic bracket forming machine forming wheel; it is made of Gr12 material, which is produced through rough turning, fine turning, and heat-out processes, with strong hardness and toughness
2. Photovoltaic support forming machine feeding device: adopts four-point adjustment of feeding, and the feeding position is more convenient to adjust.
3. Rotating bearing of photovoltaic support forming machine: We adopt roller bearing, which has longer service life and more stable transmission.
4. The punching device of the photovoltaic support forming machine: we are equipped with a rotary punch, the punching speed is faster, the production speed has been greatly improved, and it can also help you improve your work efficiency.
