| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 10.30-4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity: | 50m/min | Material Of Blade: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support | Control System: | PLC(import Brand) |
| Certification: | CE、BV、ISO | Power: | 15.5+7.5KW |
| Thickness: | 2.5-3.5mm | Dimension(L*W*H): | 12.5 M*1.3m*1.3m |
| Warranty: | 1 Years | ||
| Highlight: | 40m/min automatic roll forming machine,380v automatic roll forming machine,solar panel bracket rollformers |
||

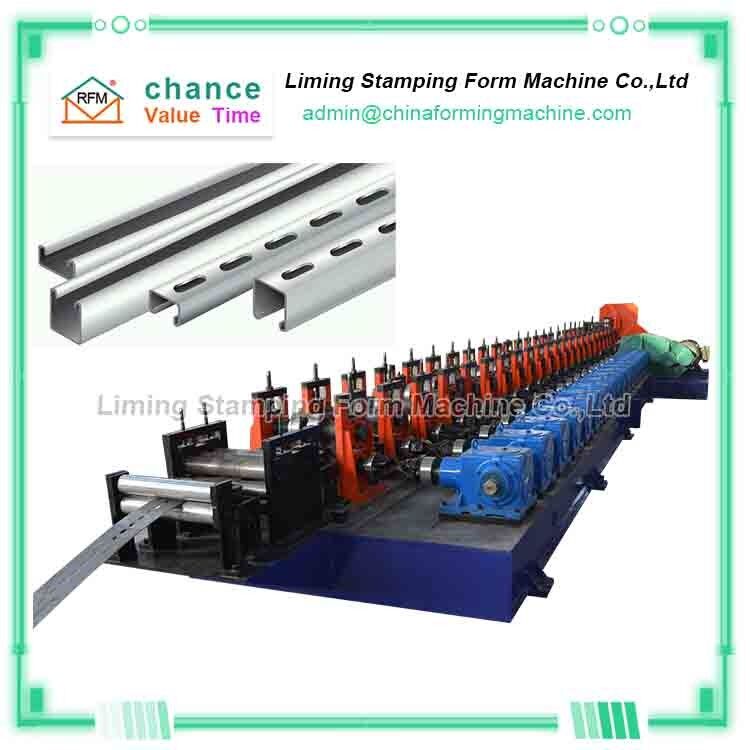

40m / Min Online Punching 380v50hz Solar Panel Bracket Roll Forming Machine
The solar panel bracket roll forming machine is a cold-formed forming equipment for the production of solar panel support frames. The equipment can be manually adjusted or replaced by several sets of rollers to complete the production requirements of different specifications of the brackets. Solar photovoltaic brackets are used in solar photovoltaic power generation systems. Bracket designed for placing, installing and fixing solar panels.
Technical parameters of 40m / Min Online Punching 380v50hz Solar Panel Bracket Roll Forming Machine
| 1 | Width of feeding material | <1000 mm coil sheet |
| 2 | Thickness of feeding material | <3.0 mm coil sheet |
| 3 | Roller station | 22 stations |
| 4 | Shaft Diameter | 75-85 mm |
| 5 | Productivity | 40 m/min |
| 6 | Rollers' material | Bearing steel |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 10 tons |
| 9 | length | 12.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 6 tons |
| 13 | Motor | 18.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6-2 inch |
| 16 | Cutting system | Hydraulic cutter |
The production process of the solar panel bracket roll forming machine is as follows:
Unwinding and unwinding-feeding guide platform-servo feeding-online rotary punching-roll forming (including gear hobbing, shaping)-tracking and cutting-receiving, including hydraulic control system, electric control box control system, etc. Part, it has the characteristics of reasonable structure, simple operation, reliable quality, short production process, and wide use of products.
The solar panel bracket roll forming machine needs to be customized production. As long as you provide the drawing, we can design your solar panel bracket roll forming machine for you according to the size of your drawing, and then our engineers will process it. Assemble, debug, test, and after long-term production and testing, it will be shipped to you.
