| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack10 2.0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Power: | 55kw | Tile Type: | Construction |
| Dimension(L*W*H): | 7500mm(L)×1200mm(W)×1300mm(H) | Production Capacity: | 15m/min |
| Warranty: | 24month | Gear Oil: | 18 # Hyperbolic Gear Oil |
| Voltage: | 380V/220V | Thickness: | 0.8-2mm |
| Highlight: | electronically controlled racking roll forming machine,delta racking roll forming machine,delta electronically controlled rack rolling machine |
||

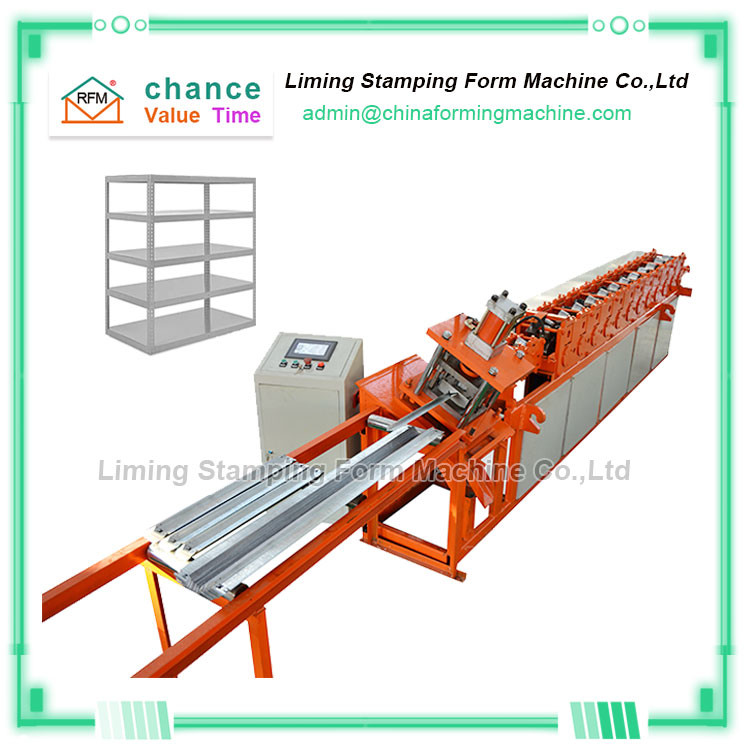

18 groups of Gr12 forming wheels are all Delta electronically controlled rack beam machines
The rack beam machine is an equipment used to produce rack beams
The technological process of the rack beam machine:
Uncoiling--Punching--Feeding---Cold Roll Forming---Fixed Length Cutting--Finished Product Receiving
The whole machine is controlled by the plc electronic control system to realize the human-machine interconnection and help you realize automated production
Main Parameters Of 18 groups of Gr12 forming wheels are all Delta electronically controlled rack beam machines
|
Item
|
Components Name
|
Quantity
|
|
1
|
3T hydraulic Decoiler
|
1 set
|
|
2
|
Leveling machine
|
1 set
|
|
3
|
80T punching press
|
1 set
|
|
4
|
Punching moul
|
4 sets
|
|
5
|
Quick -changeable Roll Forming Machine
|
1set
|
|
6
|
Flying shear
|
1 set
|
|
7
|
Hydraulic Station
|
1set
|
|
8
|
PLC control cabinet
|
1set
|
|
9
|
C beam combination machine
|
1 set
|
|
10
|
Outables
|
2 pcs
|
|
11
|
Cutting blade
|
4sets
|
The advantages of the rack beam machine:
1. The rack beam adopts a cast-type independent middle plate, which enhances the pressure bearing capacity of the rack beam machine, thereby greatly improving the stability of the rack beam machine, so as to achieve the purpose of efficient production.
2. The rack beam machine is equipped with a full range of Delta electronic control devices, one person can complete the entire production process, helping you save labor costs
3. The shelf beam machine is also equipped with Gr12 forming wheels, which ensure the high wear resistance, high precision and high toughness of the forming wheels, which can help you greatly increase the service life of the shelf beam machine.
After-sales of rack beam machine
Liming Company will provide you with 24-hour manual customers. For example, if you encounter operational problems, we will also open a video session to teach you how to operate, so as to help you efficiently produce
