| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack10 2.0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Power: | 45kw | Tile Type: | Construction |
| Dimension(L*W*H): | 6500mm(L)×1200mm(W)×1300mm(H) | Production Capacity: | 15m/min |
| Warranty: | 12month | Gear Oil: | 18 # Hyperbolic Gear Oil |
| Voltage: | 380V/220V | Thickness: | 0.8-2mm |
| Highlight: | 15m/min storage rack roll forming machine,220v storage rack roll forming machine,siemens motor racking roll forming machine |
||

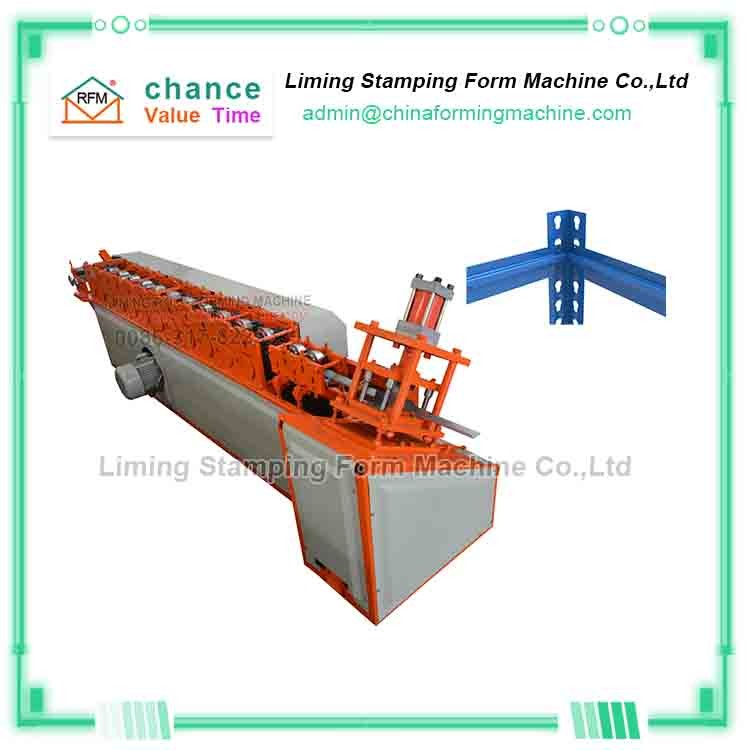

Gr12 Forming Wheel 15m/Min Storage Racking Machine Driven By Siemens Motor
Shelf machines are equipment used to produce shelf columns
Production process of racking machine
Uncoiling-punching-feeding-roll forming-hydraulic shearing-finished product discharge
The whole machine is controlled by the PLC programming system, and the operation is simple. Only one person can complete the entire production process, which can help you save a lot of labor costs.
Main Parameters Of 18 groups of Gr12 Forming Wheel 15m/Min Storage Racking Machine Driven By Siemens Motor
| Feeding material | Galvanized sheet |
| Thickness of the plate | 2-3mm |
| Machine size | About 6500mm*800mm*800mm |
| Diameter of the axle | Φ80mm |
| Material of rollers | Gcr15 |
| Rolling stages | 18 stages |
| Productivity | 10-12m/min (without punch) |
| Total power | 11 kw motor+11 kw motor+4kw Hydraulic motor |
| Voltage | 380V 60Hz 3phase or as requirement |
| Weight | About 4.5T |
| Base frame | 350 H-beam steel |
| Cutting blade | Cr12 with heat treatment |
| Cutting system | Hydraulic cutting system after forming |
| Control cabinet | PLC and frequency changer in it |
