| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack10 2.0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Power: | 45kw | Tile Type: | Construction |
| Dimension(L*W*H): | 6500mm(L)×1200mm(W)×1300mm(H) | Production Capacity: | 20m/min |
| Warranty: | 12month | Gear Oil: | 18 # Hyperbolic Gear Oil |
| Voltage: | 380V | Thickness: | 0.8-2mm |
| Highlight: | 380v rollformers,gr12 wheel rollformers,plc rollformers |
||

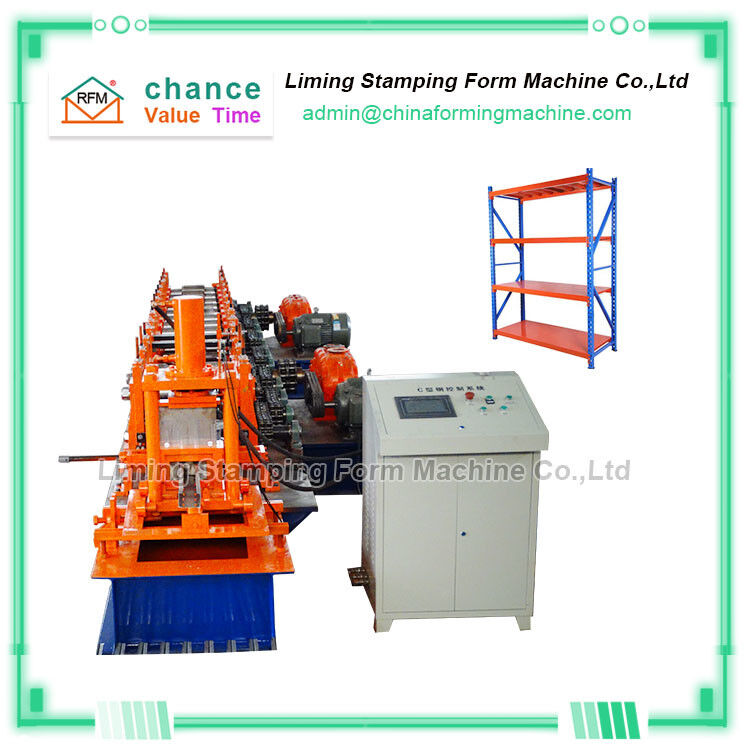

Gr12 Forming Wheel 20m / Min 380v Shelf Column Forming Machine
Liming Pressing Machinery Co., Ltd. is a company specializing in R&D, design, sales, shelf column forming machines and shelf column profiles. The Liming Company has a professional, technical, R&D, sales, and after-sales team. The entire company has more than 150 employees. It is a solid basic knowledge of machinery. At the same time, Liming Company has 25 years of rich experience in the shelf column forming machine industry, and has always been a leader in the same industry. The shelf column forming machine produced by Liming Company has accurate and can It is directly installed and used, and it has received unanimous praise from customers. If you need to produce shelf columns, we can provide you with shelf column forming machines to help you produce
Main Parameters Of Gr12 Forming Wheel 20m / Min 380v Shelf Column Forming Machine
| Feeding material | Galvanized sheet |
| Thickness of the plate | 0.8-2mm |
| Machine size | About 6500mm*800mm*800mm |
| Diameter of the axle | Φ80mm |
| Material of rollers | Gcr1 |
| Rolling stages | 18 stages |
| Productivity | 20m/min (without punch) |
| Total power | 11 kw motor+11 kw motor+4kw Hydraulic motor |
| Voltage | 380V 60Hz 3phase or as requirement |
| Weight | About 5T |
| Base frame | 350 H-beam steel |
| Cutting blade | Cr12 with heat treatment |
| Cutting system | Hydraulic cutting system after forming |
| Control cabinet | PLC and frequency changer in it |
