| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack10 2.0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Power: | 75kw | Tile Type: | Construction |
| Dimension(L*W*H): | 8500mm(L)×1200mm(W)×1300mm(H) | Production Capacity: | 25m/min |
| Warranty: | 12month | Gear Oil: | 18 # Hyperbolic Gear Oil |
| Voltage: | 380V | Thickness: | 0.8-2mm |
| Highlight: | 25/min shelf roll forming machine,380v shelf roll forming machine,rotary punching shelf roll forming machine |
||

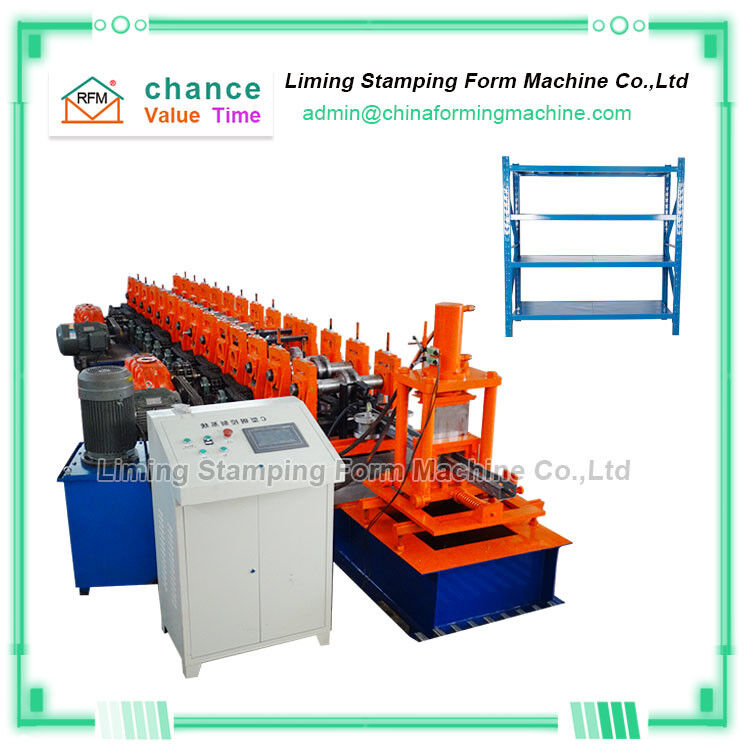

Online Rotary Punching 380v 25/Min Shelf Making Machine
Liming Pressing Machinery Co., Ltd. is a company with 25 years of experience in rack manufacturing, research and development, design, sales, after-sales, and after-sales. Since the establishment of the company, Liming has been developing through R&D and design to manufacture high-precision and long-life Based on the shelf manufacturing machine, we take all-round customer service as our responsibility, so as to achieve the goal of customer satisfaction. If you are interested in shelf production, we can provide a shelf column manufacturing machine to help you produce.
Main Parameters Of Online Rotary Punching 380v 25/Min Shelf Making Machine
| Feeding material | Galvanized sheet |
| Thickness of the plate | 0.8-2mm |
| Machine size | About8500mm*800mm*800mm |
| Diameter of the axle | Φ80mm |
| Material of rollers | Gr12 |
| Rolling stages | 18 stages |
| Productivity | 25m/min (without punch) |
| Total power | 11 kw motor+11 kw motor+4kw Hydraulic motor |
| Voltage | 380V 60Hz 3phase or as requirement |
| Weight | About 8T |
| Base frame | 350 H-beam steel |
| Cutting blade | Cr12 with heat treatment |
| Cutting system | Hydraulic cutting system after forming |
| Control cabinet | PLC and frequency changer in it |
