| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack11 3.0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Cutting Blade: | Cr 12 Mov | Tile Type: | Construction |
| Dimension(L*W*H): | 8.5m*1.6m*1.4m | Production Capacity: | 15-20m/min |
| Warranty: | 12month | Control System: | PLC |
| Voltage: | 220V | Thickness: | 2.0-3.0mm |
| Highlight: | hydraulic cutting racking roll forming machine,racking roll forming machine high speed,3.0mm rack roll forming machine |
||

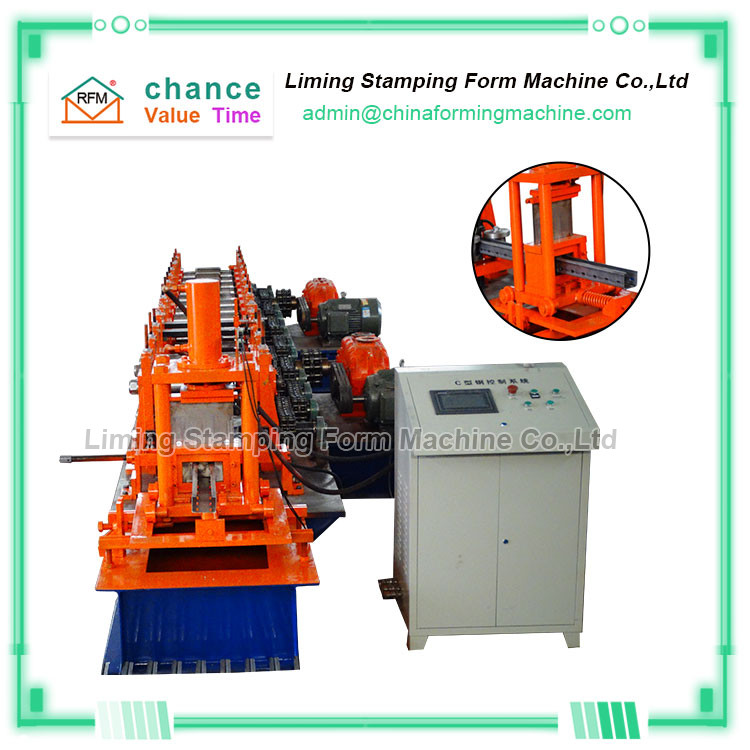

Hydraulic cutting high-speed storage rack forming machine for mass production
Liming Company is a company specializing in the production, research and development, and sales of storage shelf column forming machines and shelf column profiles. Liming Company has a professional team from consultation to the normal use of your equipment. We have professional personnel to follow up. At the same time, Liming Company also provides The customer is equipped with a complete operation video and accessories program to help customers operate the storage rack column forming machine more proficiently.
Main Parameters Of Hydraulic cutting high-speed storage rack forming machine for mass production
|
Item
|
Components Name
|
Quantity
|
|
1
|
3T hydraulic Decoiler
|
1 set
|
|
2
|
Leveling machine
|
1 set
|
|
3
|
80T punching press
|
1 set
|
|
4
|
Punching mould
|
4 sets
|
|
5
|
Quick -changeable Roll Forming Machine
|
1set
|
|
6
|
Flying shear
|
1 set
|
|
7
|
Hydraulic Station
|
1set
|
|
8
|
PLC control cabinet
|
1set
|
|
9
|
C beam combination machine
|
1 set
|
|
10
|
Outables
|
2 pcs
|
|
11
|
Cutting blade
|
4sets
|
Process flow of shelf column forming machine
Uncoiling-punching-forming host-hydraulic cutting-finished product discharge
The whole machine of the storage rack column forming machine is controlled by the PLC electric control device, and the operation is simple
Advantages of storage rack column forming machine
The storage rack column forming machine is connected to the electric control device through the aviation plug, which is convenient for installation, and also has the effect of waterproof and leakage prevention, which can help you to produce safely and avoid wiring troubles.
The hydraulic device of the column forming machine of the storage rack adopts a multi-filtered steel filter screen to ensure clean oil and sufficient pressure
