| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack11 4.0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Cutting Blade: | Cr 12 Mov | Tile Type: | Construction |
| Dimension(L*W*H): | 7.5*1.0*1.5m | Production Capacity: | 10-20m/min |
| Warranty: | 12month | Control System: | PLC |
| Voltage: | 380V | Thickness: | 0.8-2.0mm |
| Highlight: | delta cold roll forming machine,2.0mm storage rack roll forming machine,storage rack roll forming machine 380v |
||

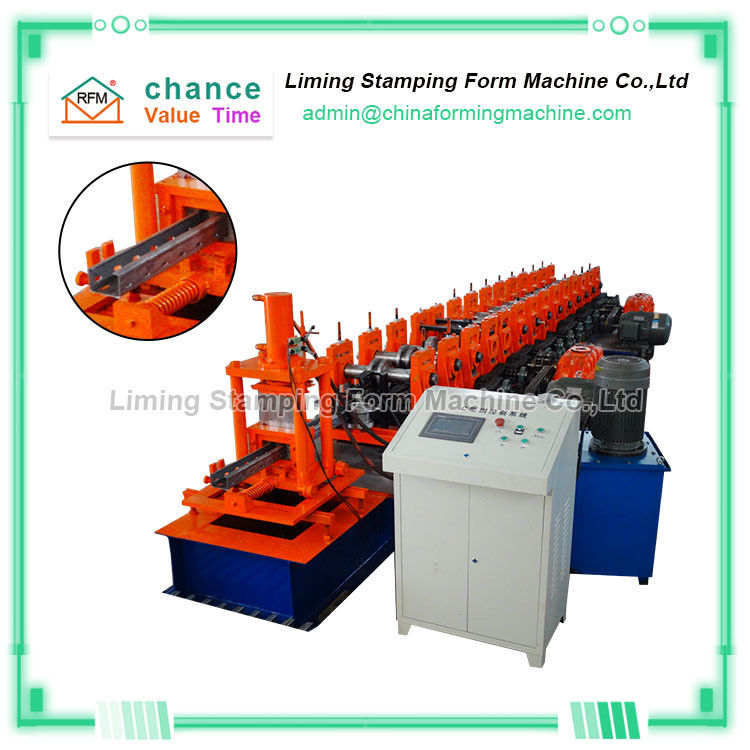

20m/min storage rack column forming machine for mass production
What is the column forming machine for storage shelves?
The storage rack column forming machine is an equipment used to produce storage rack columns
The storage rack column forming machine is divided into several parts such as uncoiling-punching-forming-fixed-length cutting-receiving and other parts. The whole machine is controlled by PLc. Just fill in the data and you can directly produce it, which can help you save A lot of labor costs
Main Parameters Of 20m/min storage rack column forming machine for mass production
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
100mm-300mm |
|
3
|
Thickness of the plate
|
0.8-2.0mm
|
|
4
|
De-coiler
|
Manual one, can load 5 tons raw material
|
|
5
|
Rollers for forming
|
16 rows
|
|
6
|
Diameter of the roller
|
80mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
5.5kw
|
|
9
|
Material of the cutting blade
|
Cr12 mov
|
|
10
|
Hydraulic cutting power
|
4kw
|
|
11
|
Processing precision
|
Within 1.00mm
|
|
12
|
Control system
|
Delta PLC control
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Main structure of the machine
|
350 H steel
|
|
15
|
Weight
|
About 4.5T
|
|
16
|
Dimensions
|
7.5*1.0*1.5m
|
|
17
|
Voltage
|
380V 50Hz 3phases(changeable as needs)
|
|
18
|
Certificate
|
CE/ISO
|
|
19
|
Custom
|
According to customer's requirements
|
Advantages of storage rack column forming machine
The storage shelf column forming machine needs to be customized. It needs to be designed by our technical team according to your samples and drawings. After the design is formed, the forming analysis is performed through professional copra software to ensure the stability of the equipment and the profile variables to ensure the production The precise size of the column profile of the storage rack.
The accessories used in the storage rack column forming machine have reached international standards and can be purchased at any hardware store.
After-sales service of the storage rack column forming machine, each storage rack column forming machine we produce has a record, and provides a 24-hour hotline, shipping accessories list, manual and operation video to help you quickly and skillfully operate the storage rack column forming machine to help You bring benefits
