| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack11 5.0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Cutting Blade: | Cr 12 Mov | Tile Type: | Construction |
| Dimension(L*W*H): | 8.5*1.4*1.5m | Production Capacity: | 10-25m/min |
| Warranty: | 12month | Control System: | PLC |
| Voltage: | 380V/220v | Thickness: | 0.8-2.0mm |
| Highlight: | 220v rack roll forming machine,0.8mm rack roll forming machine,automatic rollformer machine |
||
Error ±1mm Automatic Quick Punching Rack Forming Machine
Liming Press Forming Machinery Co., Ltd. is a company specializing in the production of shelf column forming machines and shelf column profiles. Liming Company has 25 years of shelf column manufacturing experience. The shelf column forming machines produced by Liming Company are exported to more than 100 countries in the world. Received unanimous praise from customers, if you need shelf column forming machine, we can provide
Main Parameters Of Error ±1mm Automatic Quick Punching Rack Forming Machine
|
Control System
|
PLC Colored Touch Screen
|
|
Main Frame
|
18mm steel welding
|
|
Main Power
|
5.5kw
|
|
Power Supply
|
380V, 3-Phase,50Hz or any
|
|
Forming Speed
|
12-16m/min
|
|
Roll Station
|
17 stands
|
|
Shaft Diameter
|
70 mm
|
|
Feeding Thickness
|
1.5-2.0mm
|
|
Cutter Standard
|
GCr12
|
|
Roller Standard
|
45# Plating Cr
|

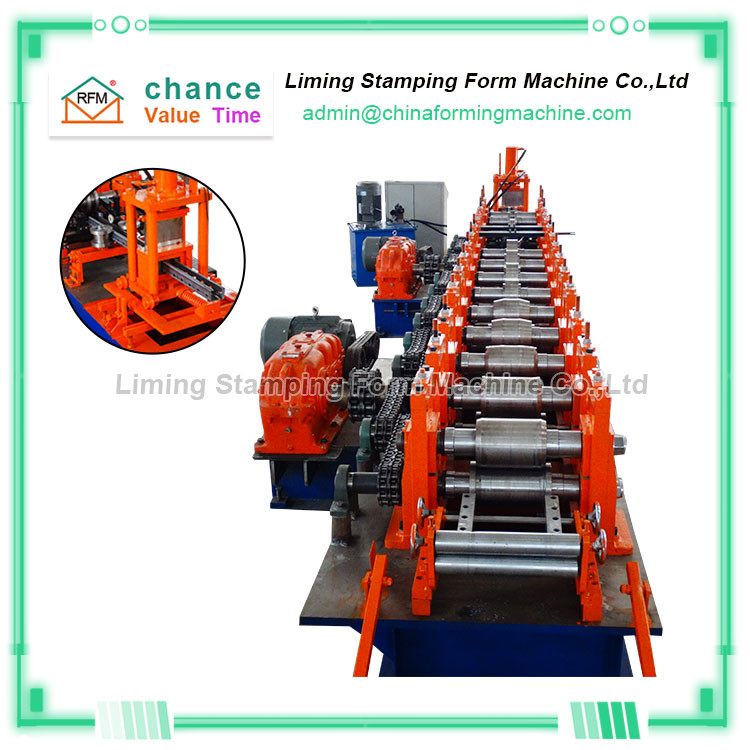

The shelf forming machine is composed of an uncoiler, a servo punch, a forming host, a hydraulic shear, and a rewinding frame. Each process is very accurate to ensure that the error is within one millimeter. At the same time, the entire production line is controlled by a plc, which can be completed by only one person. , Can help you save a lot of labor costs.
The shelf forming machine is customized production. Our technical team will design multiple sets of forming machine production schemes for you to choose according to your drawings. After you confirm, we will have professional mechanical engineers for production, assembly and production debugging to ensure that it reaches you It is a shelf forming machine that can be used directly, which can help you bring considerable benefits
