| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack 7 .0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 35set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Cutting Blade: | Cr 12 Mov | Tile Type: | Construction |
| Dimension(L*W*H): | 8.5*1.2*1.5m | Production Capacity: | 10-20m/min |
| Warranty: | 16month | Control System: | PLC |
| Voltage: | 380V | Thickness: | 2.0-2.5mm |
| Highlight: | three piece knife rollformer,hydraulic cutting rollformer,semi automatic rollformer |
||

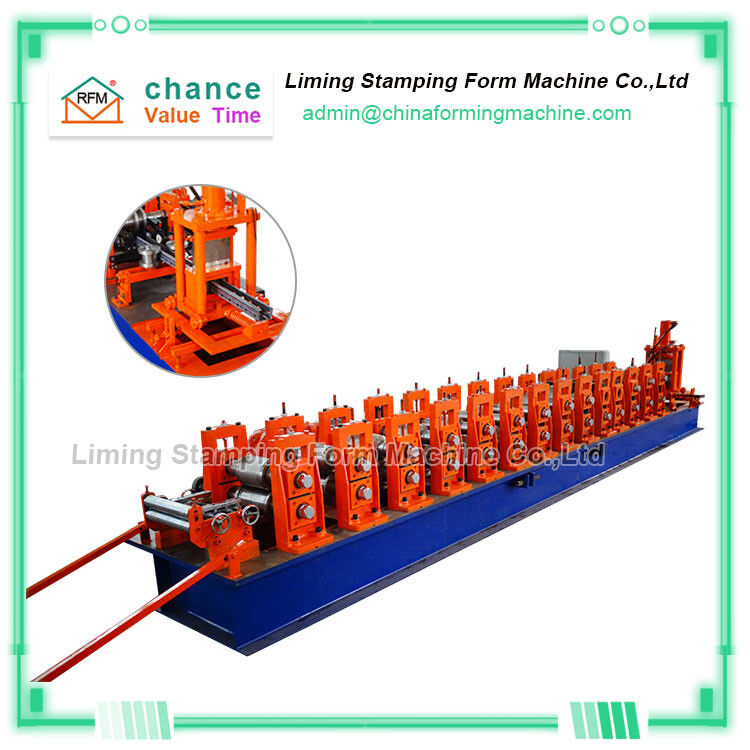

Three-piece knife hydraulic cutting 20m/min semi-automatic racking machine
What is the shelf column?
The shelf column is the column of the storage shelf that is the part of the shelf that is erected to bear the weight. There are rhombic holes arranged at equal intervals on it for inserting the beams of the shelf.
Components of racking machine
Electric decoiler: 1 set
Servo punch: 1
Feeding device: 1 set
Forming wheel: customized according to profile size
Forming plate: customized according to profile size
Three-piece knife cutting: 1 set
Electric control console: 1
Hydraulic pump station: 1
Main Parameters Of Three-piece knife hydraulic cutting 20m/min semi-automatic racking machine
| Main components of racking machine | ||
| NO | Name | quantity |
| 1 | Uncoiler |
1 |
| 2 | Middle board | Customized according to profile |
| 3 | Forming wheel | Customized according to profile |
| 4 | motormotor | 1 |
| 5 | Feeding device | 1 |
| 6 | Punching device | 1 |
| 7 | Die cut | 1 |
| 8 | Light steel receiving rack | 1 |
| 9 | PLC electric controlPLC electric control | 1 |
| 10 | Hydraulic power station | 1 |
Advantages of racking machine
1. The racking machine adopts the reducer drive mode to greatly increase the power of the racking machine, which can help you produce efficiently.
2. The racking machine uses cutting blades made of Gr15MOV material, which can ensure that the cross-section of the rack column after cutting is clean and can be used for rack sales and installation
3. The racking machines are all customized production. Our company needs to design the corresponding racking machines according to your size drawings to meet your requirements for production speed, dimensional accuracy, and load-bearing capacity.
