| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack 8 .0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 35set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Cutting Blade: | Cr 12 Mov | Tile Type: | Construction |
| Dimension(L*W*H): | 9800*1250*1400 Mm | Production Capacity: | 10-20m/min |
| Warranty: | 24month | Control System: | PLC |
| Voltage: | 380V | Thickness: | 2.0-3.0mm |
| Highlight: | liming rack roll forming machine,3mm rack roll forming machine,gr12 mold wheel rack making machine |
||

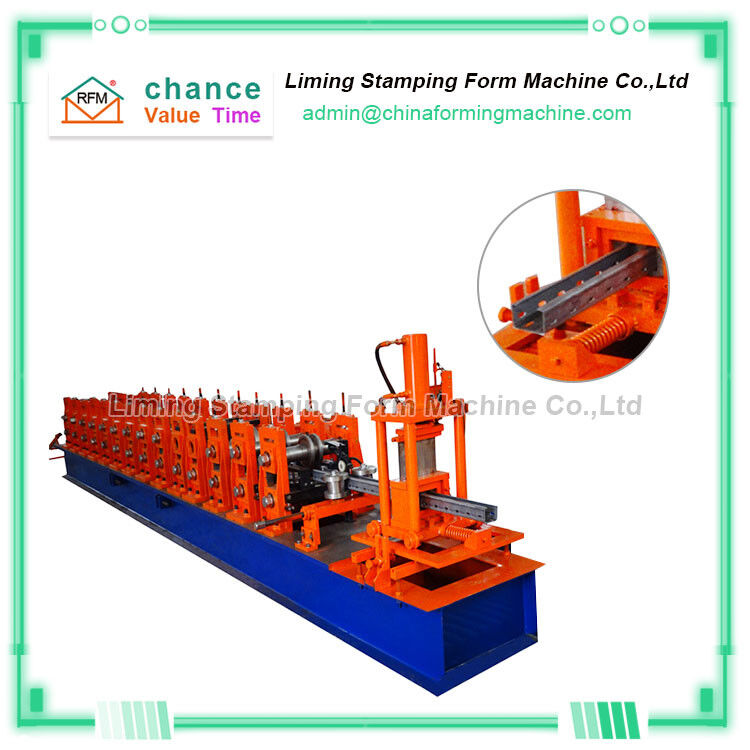

PLC Controlled One-Button Operation 20m/Min Racking Machine Is Suitable For Mass Production
The performance characteristics of the racking machine: This production line is a special forming equipment for the production of racking columns.
This racking machine produces racks with accurate dimensions, corrosion resistance, and good load-bearing capacity. It is highly praised by users. If you need to produce rack columns, we can provide rack forming machines.
Operation of the racking machine
Main Parameters Of PLC Controlled One-Button Operation 20m/Min Racking Machine Is Suitable For Mass Production
| Main components of racking machine | ||
| NO | Name | quantity |
| 1 | Uncoiler |
1 |
| 2 | Middle board | Customized according to profile |
| 3 | Forming wheel | Customized according to profile |
| 4 | motormotor | 1 |
| 5 | Feeding device | 1 |
| 6 | Punching device | 1 |
| 7 | Die cut | 1 |
| 8 | Light steel receiving rack | 1 |
| 9 | PLC electric controlPLC electric control | 1 |
| 10 | Hydraulic power station | 1 |
The shelf layer forming machine is composed of an uncoiling device, a punching device, a forming host, a fixed-length cutting device, and a finished product receiving material. The whole machine is controlled by a PLC programming system, which can help you realize the automation of the shelf column production, and also improve your Capacity.
Advantages of shelf column roll forming machine
1. The shelf column roller forming machine can be customized for customers, and the finished product is directly output, and the finished product can be directly transferred to the spraying line to work, thereby helping to reduce the complicated production process.
2. The shelf column roller forming machine adopts high-precision Gr12 mold wheels as the forming wheel, which greatly improves the service life of the shelf column roller forming machine.
2. The rack column products produced by the rack column roll forming machine are accurate in size and can be directly used for installation and sales without secondary processing. It is a dual-use equipment with high cost performance.
