| Place of Origin: | Botou Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | SGS、BV、ISO、CE |
| Model Number: | LM-rack 8 .0 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 35set/Year |
| Type: | Punching Machine | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Cutting Blade: | Cr 12 Mov | Tile Type: | Construction |
| Dimension(L*W*H): | 8500*1250*1400 Mm | Production Capacity: | 10-20m/min |
| Warranty: | 12month | Control System: | PLC |
| Voltage: | 380V,50HZ,3PH(or As Customers' Request) | Thickness: | 0.5-2.50mm |
| Highlight: | 0.5mm rack making machine,plc rack making machine,30m/min punching rack roll forming machine |
||

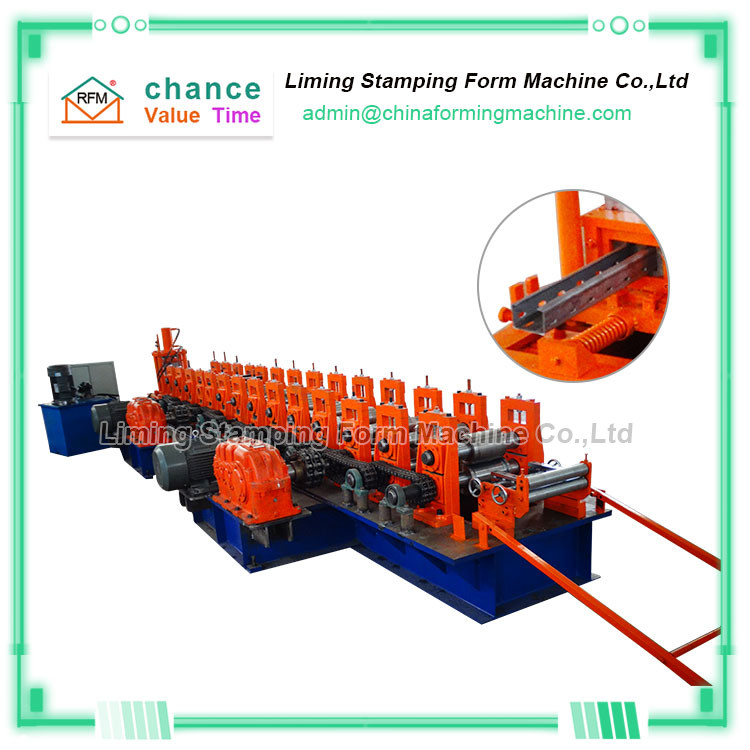

Plc Control 30m/Min Roll Punching Rack Making Machine
With the development of the times and the rapid development of the shelf industry, shelves are widely used in electronics, home appliances, communications, computers, meters, furniture, clothing, automobiles, tires, supermarket stores and other industries for storing goods. If you need to produce shelf columns, we can provide you with shelf making machines.
Process flow of shelf making machine
Raw material uncoiling--punching--feeding--cold-rolling forming--fixed-length cutting--finished product splicing
Main Parameters Of Plc Control 30m/Min Roll Punching Rack Making Machine
| Item | Name | Description |
| 1 | Decoiler | Capacity:5 tons |
| 2 | Material | Steel Coil |
| 3 | Thickness | 0.5-2.5mm |
| 4 | Transmission | Chain/Gear/Gearbox |
| 5 | Speed | 10-20m/min |
| 6 | Roller | Steel with quenched treatment,chromed on the surface |
| 7 | Shaft | steel with tempering treatment |
| 8 | Cutting type | Hydraulic cutting |
| 9 | Cutting material | Cr12 with quenched treatment Hardness58°-62° |
| 10 | Welding | Automatic spot welding |
| 11 | Control system | PLC |
| 12 | Electric brand | Delta,Siemens,Schneider |
| 13 | Voltage | 380V,50HZ,3PH(or as customers' request) |
Advantages of shelf making machine
1. PLC electronic control to realize the automated production of shelf columns can help you save a lot of labor costs and bring you a lot of benefits.
2. The roll punching used by the shelf making machine can reach a punching speed of 50m/min, so that the entire shelf making machine can achieve high-efficiency and high-speed production.
3. The thickness that the shelf making machine can produce is 0.8-2mm, which can meet your requirements for the thickness of heavy-duty shelf column profiles.
4. The rack manufacturing machine needs to be precisely designed according to the size of the beam you need. We guarantee that the rack manufacturing machine designed for you will be shipp
