| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 11.03 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity:: | 30m/min | Material Of Blade:: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Cutting Blade Material:: | Cr 12 High Grade Steel | Thickness:: | 0.5-2mm |
| Dimension(L*W*H):: | 7500*1300*1100 | Material Of Rollers:: | 45#steel Forge |
| Voltage: | 380V 50Hz 3Phases | ||
| Highlight: | photovoltaic mounting roll former machine,reducer drive roll former,flying saw cutting roll forming equipment |
||

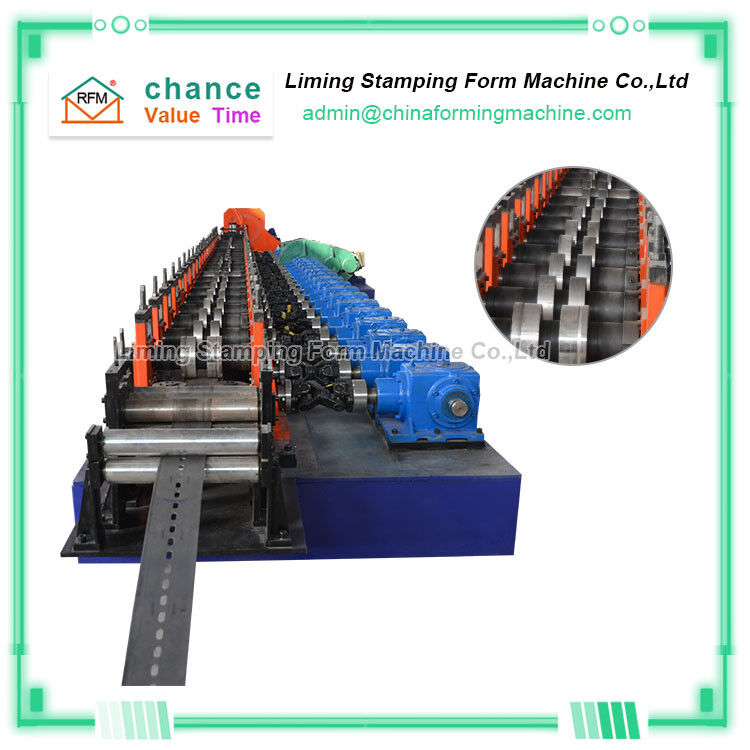

Reducer drive Flying saw cutting Photovoltaic mounting machine
Photovoltaic support machine is used to produce solar photovoltaic support equipment
Technological process of photovoltaic support machine:
Uncoiling - Punching - Roll forming - Shearing - Finished product receiving
Technical parameters of Reducer drive Flying saw cutting Photovoltaic mounting machine
| No. | Item | Description |
| 1 | Products’ sizes | According to customer’s profile drawing |
| 2 | Processing material | GI |
| 3 | Processing thickness | 0.5-2.0MM |
| 4 | Main motor power of roll forming machine | 55kw |
| 5 | Power of hydraulic station for cutting device | 7.5kw |
| 6 | Quantity of roller stations | 22 |
| 7 | Production speed | 30m/min |
| 8 | Diameter of shafts | Φ80mm |
| 9 | Material of rollers | Cr12 steel with vacuum heat treatment HRC57°-60° |
| 10 | Material of shafts | 45# steel quenched and tempered |
| 11 | Driven method | Chain transmission |
| 12 | Brand of PLC | Delta |
| 13 | Cut mode | Hydraulic profile cutting for Pole and Rafter profile & fly-saw cutting for purlin profile |
| 14 | Power supply | 380V 50HZ 3Phases or at buyer’s requirement |
Structural advantages of photovoltaic support machine:
1. Photovoltaic bracket forming machine uncoiler: The uncoiler does not occupy space. The whole machine adopts an integral steel body, which has a solid structure, stable operation, small footprint and space saving.
2. Photovoltaic bracket forming machine punching: The machine body is welded with steel plate, which has good rigidity and beautiful appearance.
3. Photovoltaic support molding machine molding host molding pass: about 20-22 (rollers) according to the product's drawing requirements to determine the molding variety: C profile transmission mode: chain drive, gear box drive, can help you greatly improve output efficiency .
4. Photovoltaic bracket forming machine flying saw cutting. Structural features: The cutting machine is placed behind the forming machine, and the length is fixed by the host, and the cutting length can be set by itself.
1. 5. Electrical control system of photovoltaic support forming machine: The whole line adopts PLC control, LCD touch screen, man-machine interface. Realize the interaction between human and PLC. The operator automatically runs through the set program (programmable control) and monitors the control process, so that the operator can control the production line and modify the control parameters, and can monitor the equipment running status, operating parameters and fault indications in real time. The length of the part is set digitally, and the length of the part can be adjusted. Realize the automation of solar photovoltaic bracket forming machine
