| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 12-1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 45set/Year |
| Production Capacity:: | 30m/min | Material Of Blade:: | Cr12Mov,HRC58-62 |
|---|---|---|---|
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Cutting Blade Material:: | Cr 12 High Grade Steel | Thickness:: | 1-3mm |
| Dimension(L*W*H):: | 7500*1300*1100 | Material Of Rollers:: | 45#steel Forge |
| Voltage: | 380V 50Hz 3Phases | ||
| Highlight: | 25 channels roll forming equipment,photovoltaic mounting roll forming equipment,photovoltaic mounting rollformers |
||

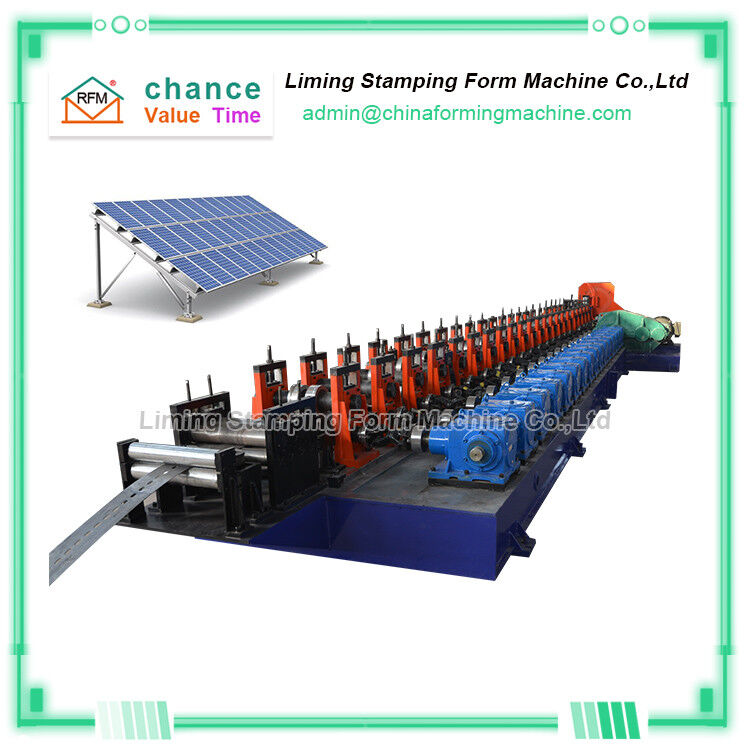

20-25 channels forming 30m/min automatic photovoltaic mounting machine
Photovoltaic mounting machine is a cold-formed forming equipment for the production of solar panel support frames. The equipment can be manually adjusted or replaced by several sets of rollers to complete the production requirements of different specifications of brackets. Solar photovoltaic brackets are used in solar photovoltaic power generation systems for placement, installation and fixing. The bracket designed by the solar panel, which has the characteristics of corrosion resistance, easy installation and easy transportation, is well received by people. If you need to produce photovoltaic support, we can provide photovoltaic support machine
Technical parameters of 20-25 channels forming 30m/min automatic photovoltaic mounting machine
| No. | Item | Description |
| 1 | Products’ sizes | According to customer’s profile drawing |
| 2 | Processing material | GI |
| 3 | Processing thickness | 1-3MM |
| 4 | Main motor power of roll forming machine | 55kw |
| 5 | Power of hydraulic station for cutting device | 7.5kw |
| 6 | Quantity of roller stations | 22 |
| 7 | Production speed | 30m/min |
| 8 | Diameter of shafts | Φ80mm |
| 9 | Material of rollers | Cr12 steel with vacuum heat treatment HRC57°-60° |
| 10 | Material of shafts | 45# steel quenched and tempered |
| 11 | Driven method | Chain transmission |
| 12 | Brand of PLC | Delta |
| 13 | Cut mode | Hydraulic profile cutting for Pole and Rafter profile & fly-saw cutting for purlin profile |
| 14 | Power supply | 380V 50HZ 3Phases or at buyer’s requirement |
The production process of photovoltaic mounting machine is as follows:
Unwinding and unwinding-feeding guide platform-servo feeding-online rotary punching-roll forming (including gear hobbing, shaping)-tracking and cutting-rewinding, including hydraulic control system, electric control box control system, etc. Part, it has the characteristics of reasonable structure, simple operation, reliable quality, short production process, and wide use of products.
Photovoltaic mounting machines need to be customized production. As long as you provide drawings, we can design your own solar panel support roll forming machine according to the size of your drawings, and then process, assemble, debug and test by our engineers. , After the long-term production test is completed, it will be shipped to you.
Free Solar PV Bracket Roll Forming Machine 3D rendering custom design
Photovoltaic bracket profiles can be customized
Solar PV Bracket Roll Forming Machine professional inspection
