| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Solar 12-5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50set/Year |
| Produce Speed: | 10-15m/min | Driven Method: | Driven Method |
|---|---|---|---|
| Material Of Shafts: | Cr12 Steel | Suitable Material: | Q235, Q345 Cold Steel Strips, Hot Galvanized Strips Q235, Q345 Cold Steel Strips, Hot Galvanized Strips |
| Feeding Width: | ≤200mm | Thickness: | 1.5-2.5mm |
| Dimension(L*W*H): | 7500*1300*1100 | Roller Shaft Diameter: | φ70mm |
| Voltage: | 380V Or200V | ||
| Highlight: | solar photovoltaic bracket steel forming machine,thickness 1.5mm steel forming machine,solar photovoltaic bracket metal forming machine |
||

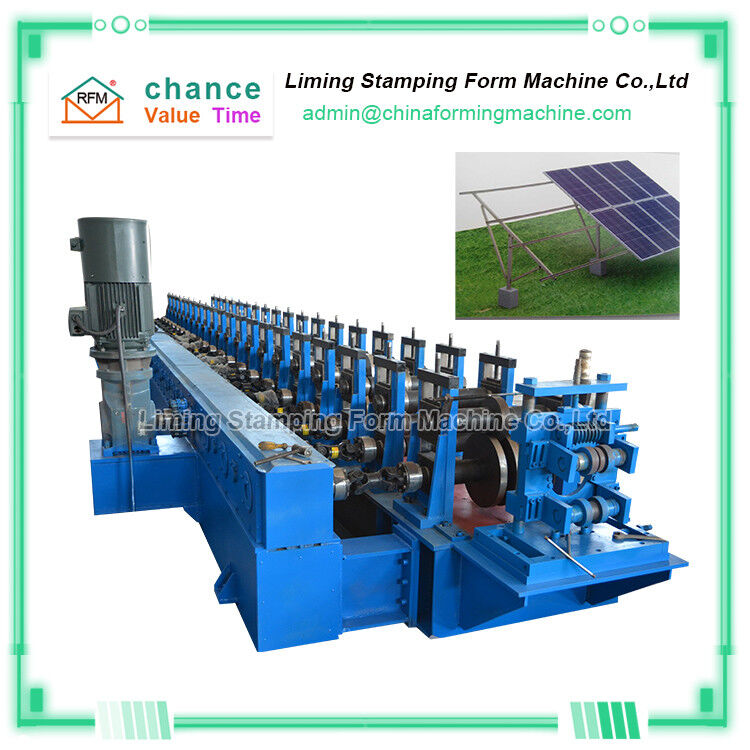

Feeding 200 thickness 1.5-2.5mm solar photovoltaic bracket forming machine
Solar photovoltaic stent forming machine is suitable for equipment for producing photovoltaic stents
Structural Features of Solar Photovoltaic Mounting Machine:
1. The unwinding rack is integrated with the leveling machine, which does not occupy space and is easy to operate. The variable diameter supporting device is used to facilitate loading and unloading.
2. The whole machine adopts an integral steel body, which has a solid structure, stable operation, small area and space saving.
3. After the roller is heat-treated and quenched to HRC60 degrees, it is chrome-plated and then ground, with strong toughness.
Feeding ＜200 thickness 1.5-2.5mm solar photovoltaic bracket forming machine
Solar photovoltaic stent forming machine is suitable for equipment for producing photovoltaic stents
Structural Features of Solar Photovoltaic Mounting Machine:
1. The unwinding rack is integrated with the leveling machine, which does not occupy space and is easy to operate. The variable diameter supporting device is used to facilitate loading and unloading.
2. The whole machine adopts an integral steel body, which has a solid structure, stable operation, small area and space saving.
3. After the roller is heat-treated and quenched to HRC60 degrees, it is chrome-plated and then ground, with strong toughness.
Technical parameters of Feeding 200 thickness 1.5-2.5mm solar photovoltaic bracket forming machine
| No. | Item | Specification |
| 1 | Can Formed Material | Galvanized steel strip |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 50Hz 3Phase |
| 4 | Thickness of sheet (mm) | 1.5-2.5mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | As your requirement |
| 7 | The size of the roll forming machine | 7000*1400*1200mm |
| 8 | Speed | 15m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | About 7 tons |
| 11 | Material of rollers | Cr12 |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 35KW |
| 15 | Power of hydraulic system | Customized according to profile |
| 16 | Power of main molding core | Customized according to profile |
Structural parameters of solar photovoltaic bracket forming machine
1Servo Feeder for Solar Photovoltaic Bracket Forming Machine
Function: feeding
Structural features: Driven by a servo motor-3KW. Multi-stage feeding: 10 groups of different feeding lengths can be input, and each group provides 999 stamping times. LCD touch display is convenient to change and set various technical parameters. The automatic induction start system is linked with the punch (control the start of the punch).
2. Solar photovoltaic bracket forming machine punch
Function: Punching
Structural features: The machine body is welded by steel plate, with good rigidity and beautiful appearance.
3. Forming host of solar photovoltaic bracket forming machine
Forming passes: about 20-22 passes (rollers) are determined according to the requirements of the product drawings
Forming variety: C profile
Forming frame: gantry type, gear box drive.
Feeding width: ≤200mm
Material thickness: 1.5-2.5mm
Roller shaft diameter: φ70mm
Roll die material: Gcr15, quenching treatment, HRC58-62°
Main drive motor: 22kw servo motor drive (with brake function).
4. Cutting machine for solar photovoltaic bracket forming machine
Form: hydraulic cutting machine / burr-free cutting (optional)
Structural features: The cutting machine is placed behind the forming machine, and the length is fixed by the host, and the cutting length can be set by yourself.
