| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin 1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200set/Year |
| Voltage: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| Weight: | 6.5T | Warranty: | 2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Use: | Purlin,C&Z,steel Structure |
| Tile Type: | C Z Purlin Roll Forming Machine Light | Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Work Pressure:: | 16 MPA | Voltage:: | 380V 50HZ |
| Highlight: | 2500KGS CZ Purlin Roll Forming Machine,16 MPA CZ Purlin Roll Forming Machine |
||

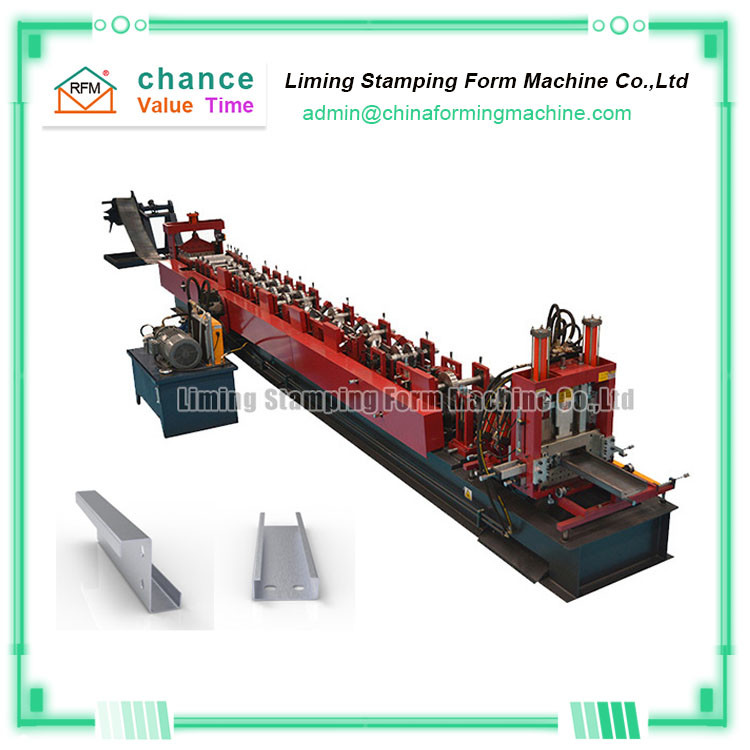

Quick Change With PLC Control Steel CZ Purlin Roll Forming Machine
Quick Change With PLC Control Steel CZ Purlin Roll Forming Machine is mainly composed of passive loading rack, leveling device, punching device, cutting device after forming, hydraulic station, computer control system, etc. This machine adopts automatic flying saw punching, easy to operate and so on. The main purpose products can be used as the main force-bearing structure of large and medium-sized industrial civil buildings. C-shaped steel machine, also known as C-shaped steel sandal bar machine, is one of many varieties of tile pressing machine, and it is a basic type of tile pressing machine. Unlike the color steel plate forming machine, it is hydraulically powered and has a large power, generally around 22KW. Similar to the shearing and bending machine, the general control process is complicated and PLC control is mostly used.
Technical Parameters of Quick Change With PLC Control Steel CZ Purlin Roll Forming Machine
| NO. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.3-0.7mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 5500mmx1200mmx1400mm |
| 8 | Speed | 12-15m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | 2200-2500KGS |
