| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin12-1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 45set/Year |
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Production Capacity:: | 30M/min |
|---|---|---|---|
| Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pump | Thickness: | 1.5-3.0mm |
| Warranty: | 1 Years | Certification: | CE、BV、ISO |
| Usage:: | Beam And Support In Steel Construction | Raw Material:: | Steel |
| Dimension(L*W*H): | 5000*1000*1000mm | Weight:: | 14000kg |
| Highlight: | roof truss purlin roll forming machine,gearbox purlin roll forming machine,adjustable cz purlin roll forming machine |
||

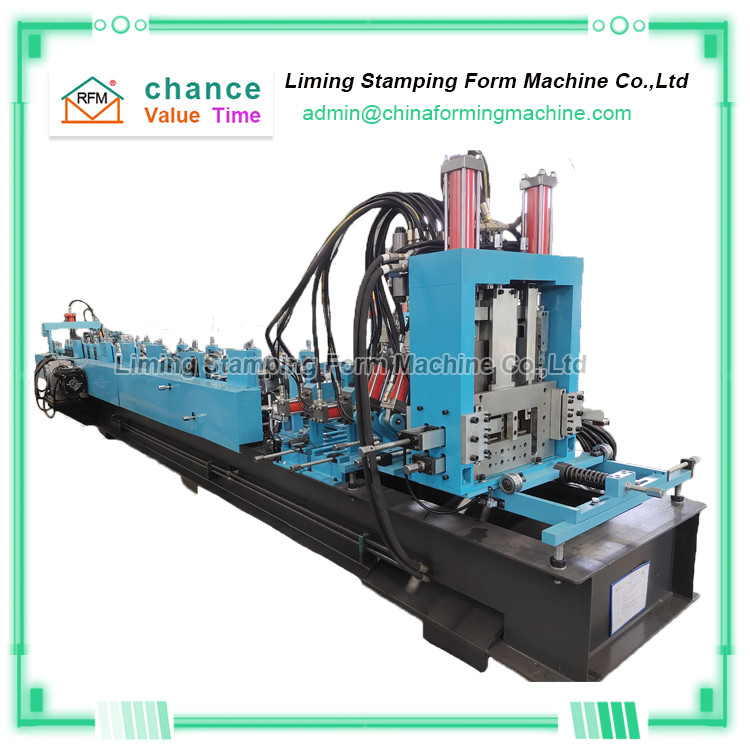

One-Piece Cast Intermediate Plate Purlin Forming Machine CZ Adjustable, Suitable For Roof Truss
CZ purlin forming machine, also known as quick-change steel purlin forming machine or CZ groove type interchangeable purlin forming machine, can be used to produce C-shaped purlins and Z with punches in various sizes, different thicknesses, webs and flanges. Type purlin.
Both the CZ shape interchange unit and the size change unit of the fully automatic CZ purlin machine are controlled by PLC and can be changed through the settings on the touch screen.
Technical parameters of One-Piece Cast Intermediate Plate Purlin Forming Machine CZ Adjustable, Suitable For Roof Truss
| Raw Material | Type | Galvanized Sheet, Black Sheet |
| Thickness | 1.5-3.0mm | |
| C Purlin Size | Web x Flange x Lip | 80-300/ 30-80/ 10-20 |
| Z Purlin Size | Web x Flange x Lip | 120-300/ 30-80/ 10-20 |
Performance |
Speed | Max. 30m/min |
| C & Z Interchange | PLC Control, Fully Automatic | |
| Size Change | PLC Control, Fully Automatic | |
| Uncoiler | Type | Mechanical or Hydraulic |
| Capacity | 6 T | |
Main Machine |
Main Roller Station | 18 |
| Main Drive | Hydraulic Motor or Servo Motor | |
| Transmission Type | Chain | |
Punching & Cutting |
Punching Location | Web + Flange |
| Punching Unit | 5 Sets | |
| Cutter Type | Universal Cutter |
Main components of purlin forming machine:
Uncoiler
Type: Hydraulic Uncoiler
Carrying capacity: 3T/6T/10T
Purlin host
1. Roller material: Cr12, heat-treated, polished and galvanized.
2. Main motor: hydraulic motor
3. CZ interchange: C and Z purlin interchange, PLC control
4. Size change: The size change is also controlled by PLC, set by touch screen, continuously adjustable.
Hydraulic punching and universal cutting system
1. Punching unit: 5 sets
2. It is suitable for general-purpose tools of all purlin sizes.
3. The cutting length, pieces and punching are all controlled by PLC.
4. There will be no burrs after cutting
