| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin12-2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 45set/Year |
| Production Product Specifications:Production Product Specifications: | C Width (80-300mm), Z Width (120-300mm) | Production Capacity: | 25M/min |
|---|---|---|---|
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pump | Thickness: | 1.5-3.0mm |
| Warranty: | 1 Years | Certification: | CE、BV、ISO |
| Usage: | Beam And Support In Steel Construction | Material: | 45# |
| Dimension(L*W*H): | 5000*1000*1000mm | Weight:: | 14000kg |
| Highlight: | automatic c and z purlin machine,stepless cutting c and z purlin machine,integrated c purlin roll former |
||
Technical parameters of Fully Automatic Purlin Roll Forming Machine Stepless Cutting CZ Steel Integrated Machine
|
machine name:
|
full automatic C purlin, C Z purlin interchangeable roll forming machine
|
|
Max. capacity of decoiler:
|
5000kg
|
|
Suitable material:
|
Cold-rolled steel strip and heat-treated galvanized steel strip
|
|
leveling rollers
|
4 up and 5 down leveling rollers
|
|
The diameter of the leveling shaft
|
100MM
|
|
Levelling roller material:
|
45# steel
|
|
Main motor type
|
Hydraulic motor
|
|
Hydraulic motor brand
|
TILORMS
|
|
Motor power :
|
22KW
|
|
Thickness of raw material:
|
1.5-3.0mm
|
|
Speed of forming
|
25m/min (according to punching)
|
|
Processing precision
|
within 2.0mm
|
|
Material of roller
|
GCr15
|
|
Main Roller stations:
|
15 groups
|
|
Material of main shaft:
|
40Cr
|
|
Diameter of main shaft:
|
Ø85mm
|
|
The thickness of the side plate:
|
30mm
|
|
Chain size:
|
2 inch
|

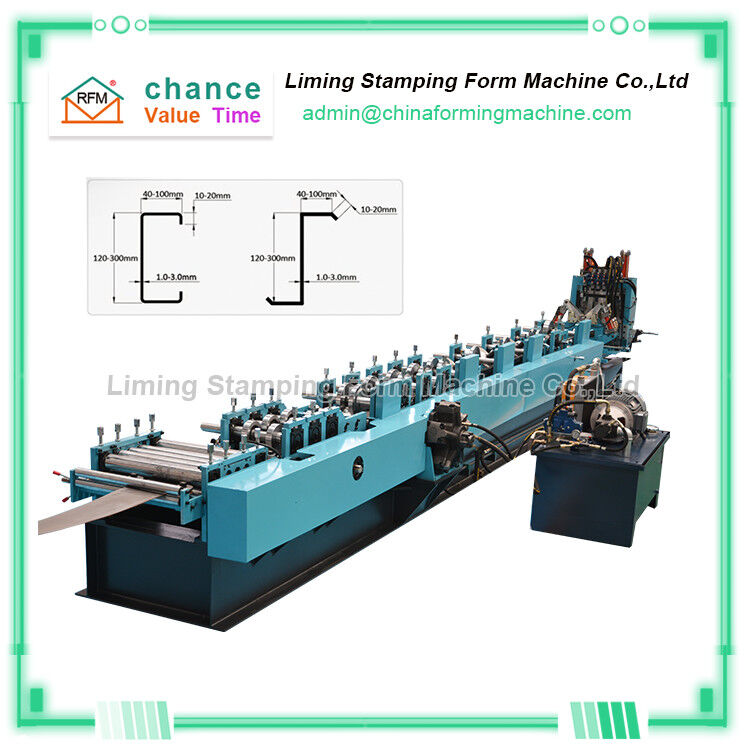

The fully automatic stepless cutting CZ steel integrated machine is a single roll forming unit that can produce various specifications of CZ purlin finished products with a set of rolls. The automatic stepless cutting CZ steel integrated machine is mainly composed of a passive loading rack, a leveling device, a front shearing device, a forming host, an automatic punching device, a stepless forming post-cutting device, a hydraulic station, a computer control system, etc.
Fully automatic stepless cutting CZ section steel integrated machine can exchange CZ section steel, realize any type change of 80-300mm within one minute, reach the product change specification you need, and the forming cutter can realize any type of 80-300 stepless cutting , No need to change tools. The feed inlet is automatically centered and adjusted, cut to a fixed length, with accurate accuracy, 8-15m/min per minute, which saves labor costs and improves production efficiency.
