| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Slitting 1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300set/Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | Slitting Machine In Other Packaging Machinery |
|---|---|---|---|
| Name: | Uncoiling And Slitting And Recoiling Line | Color: | Customized |
| Application: | Metal Cutting,Slitting Line | Raw Material: | Ppgi,GI |
| Cutting Width (mm):: | 100 - 300 Mm | Coil Weight (T):: | 3/ 5/ 10 Tons |
| Cutting Speed(m/min):: | 8 - 20 M/min | Leveling Precision(±mm/m):: | 1 ±mm/m |
| Highlight: | ppgi Coil Slitting Line,Multifunction Metal Coil Slitting Machine,ppgi Metal Coil Slitting Machine |
||

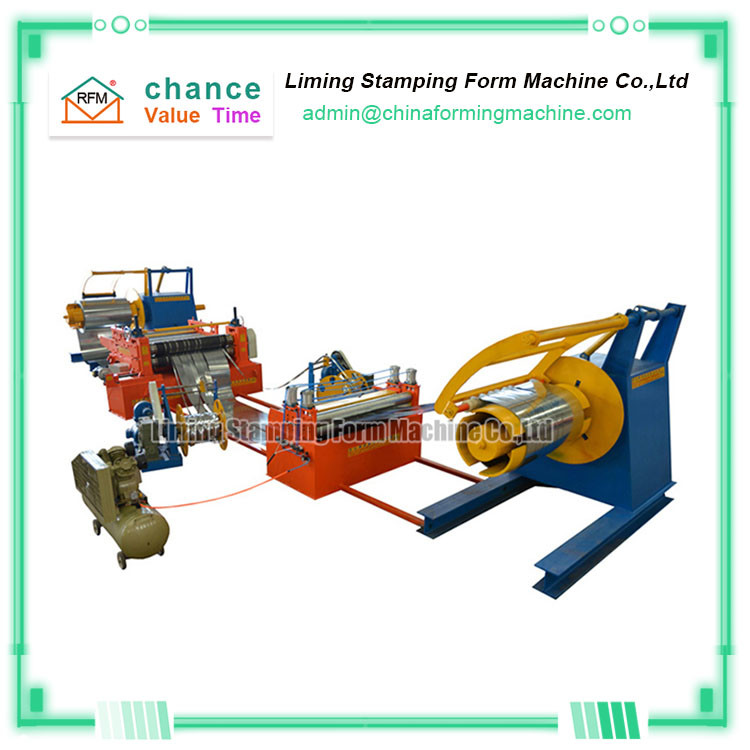

Heavy Sheet Metal Multifunction Cutting To Length Coil Slitting Line
Our slitting line is robust and modular, being able to be configured exactly to the needs of our customers, they can be equipped with various accessories and options that increase the ease of operation, reduce the setup time and increase the performance of the machine.
Winding for small and large coils continues to be a strong demand in the sector. The slitting line provides this service advantageously. Designed to serve flexible systems, with smaller volumes to large processes, such as ventilation companies, manufacturers of spiral tubes, profile manufacturers, stamping plants, etc.
The longitudinal slitting lines meet the most diverse needs of the market, processing coils with thicknesses from 0.30mm to 6.35mm, with widths from 600mm to 1600mm and speeds up to 120m / min.
Technical Parameters of Heavy Sheet Metal Multifunction Cutting To Length Coil Slitting Line
| No. | Item | Specification |
| 1 | PPGI,GI,AI | Width(1000/1200mm) |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | customer request |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 5500*1400*1300(customize) |
| 8 | Speed | 650 m /min |
| 9 | Diameter of shaft | |
| 10 | Weight of the Machine | 4-6T |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Language | English(Support multiple languages) |
slitting line
