| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-PBG2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Type: | Tile Forming Machine | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Control System: | PLC(Touch Screen) | Brand Name: | LIMING |
| Cutting Type: | Hydraulic Cutting | Forming Speed: | 8~15m/min |
| Weight: | 5T | Tile Type: | Colored Glaze Steel |
| Usage: | Building | Oil Paint: | National Standard Orange Or As Your Request |

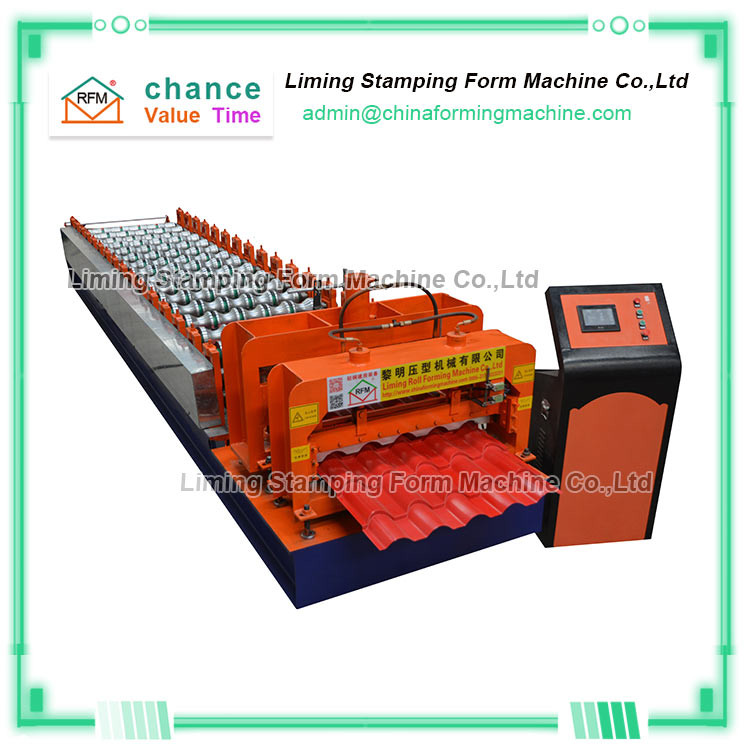

Metal Glazed Tile Roofing Sheet Roll Forming Machine
The production process of glazed tiles and western tiles is not complicated. The metal glazed tile roofing sheet roll forming machine can be produced by fully automatic production line equipment, or part of the metal glazed tile roofing sheet roll forming machine for manual production. The automatic metal glazed tile roofing sheet roll forming machine has a very high automation program and requires less labor. It adopts a production method that combines a metal glazed tile roofing sheet roll forming machine with manual operations. It has low investment and quick results. Need more personnel.
Advantages of the Metal Glazed Tile Roofing Sheet Roll Forming Machine:
Reasonable structure, convenient installation, large effective coverage area, small roof load.
Q1. What are the payment terms and delivery time of your metal glazed tile roofing sheet roll forming machine?
A1: Pay a 30% deposit by wire transfer in advance. After and before you check the machine, 70% of the wire transfer balance will be used as a wire transfer
delivery. Of course your payment terms are acceptable. After we receive the down payment, we will arrange production. About 30-45 days delivery.
Technical parameters of Metal Glazed Tile Roofing Sheet Roll Forming Machine
| Suitable Raw Material | 0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request |
| Under Frame | 350 H-beam |
| Sidewall | 16mm |
| Connect Bar | 25mm, zinc plated |
| Roller | High grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway |
| Shaft | 70mm, solid, finish turning, cylindrical grinding, with keyway |
| Forming Stations | 16 |
| PLC | DELTA, TAIWAN |
| Main Motor | 5.5kw, Lichao, Shanghai, with reducer |
| Hydraulic Pump station | 4kw |
| Cutting blade | Cr12Mov, quenching 58-62°, double oil cylinder |
| Oil paint | National standard Orange |
| Computer screen | DELTA, TAIWAN |
| Chain | 1inch |
