| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-PBG3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Type: | Tile Forming Machine | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Control System: | PLC(Touch Screen) | Cutting Type: | Hydraulic Cutting |
| Forming Speed: | 8~25m/min | Weight: | 4.6 |
| Tile Type: | Colored Glaze Steel | Usage: | Roofing |
| Oil Paint: | National Standard Orange Or As Your Request | Condition: | New |

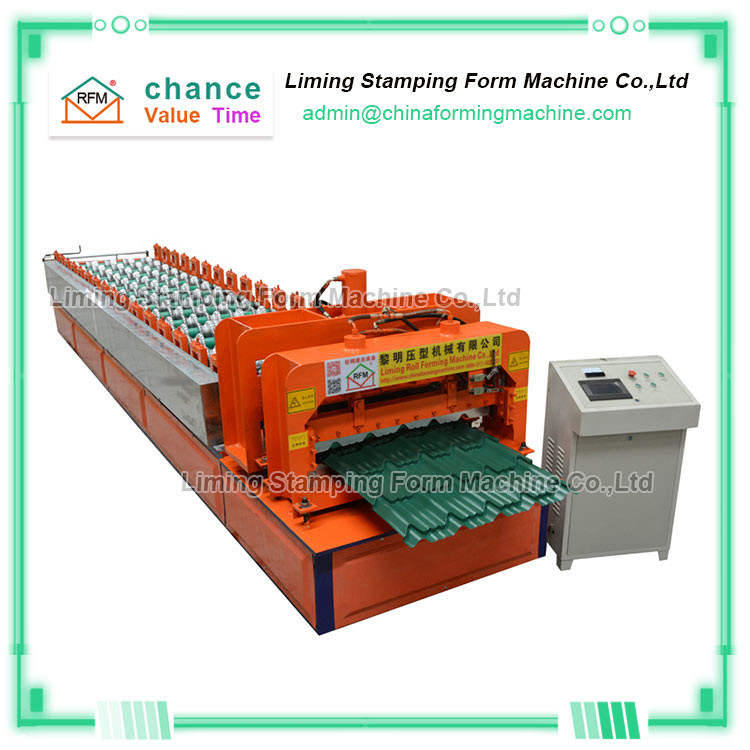

Arc Bias Steel Roof Glazed Tile Roll Forming Machine
Application range of Arc Bias Steel Roof Glazed Tile Roll Forming Machine
It is widely used in villas, resorts, garden factories, tourist attractions, pavilions, hotels, exhibition halls and other buildings.
Advantages of the Arc Bias Steel Roof Glazed Tile Roll Forming Machine:
Reasonable structure, convenient installation, large effective coverage area, small roof load.
Q1. What are the payment terms and delivery time of your Arc Bias Steel Roof Glazed Tile Roll Forming Machine?
A1: Pay a 30% deposit by wire transfer in advance. After and before you check the machine, 70% of the wire transfer balance will be used as a wire transfer delivery. Of course your payment terms are acceptable. After we receive the down payment, we will arrange production. About 30-45 days delivery.
Q2. Does your Arc Bias Steel Roof Glazed Tile Roll Forming Machine have after-sales support?
A2: Yes, we are happy to provide advice, and we have skilled technicians all over the world.
Q3. What should I do if the Arc Bias Steel Roof Glazed Tile Roll Forming Machine is broken?
A3: We provide 18 months free warranty and free technical support for the entire service life of any machine.
Technical parameters of Arc Bias Steel Roof Glazed Tile Roll Forming Machine
| Shaft | 70mm diameter |
| Forming wheel | 45# forging material and hard chrome plating |
| Transmission mode | sprocket, chain |
| Cutting system | Gr12 |
| Forming speed | 15-25m/min |
| Electrical control system: | all adopt industrial computer PLC control |
| Host power | 3kw |
| Hydraulic shear power | 4kw |
| Hydraulic station pressure |
10-12MPa |
