| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-GT2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Material Expand Width: | 1000mm | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Control System: | PLC(Touch Screen) | Cutting Type: | Hydraulic Cutting |
| Forming Speed: | 8~25m/min | Weight: | 4.8T |
| Efficiency Width: | 840mm | Usage: | Roofing |
| Oil Paint: | National Standard Orange Or As Your Request | Condition: | New |

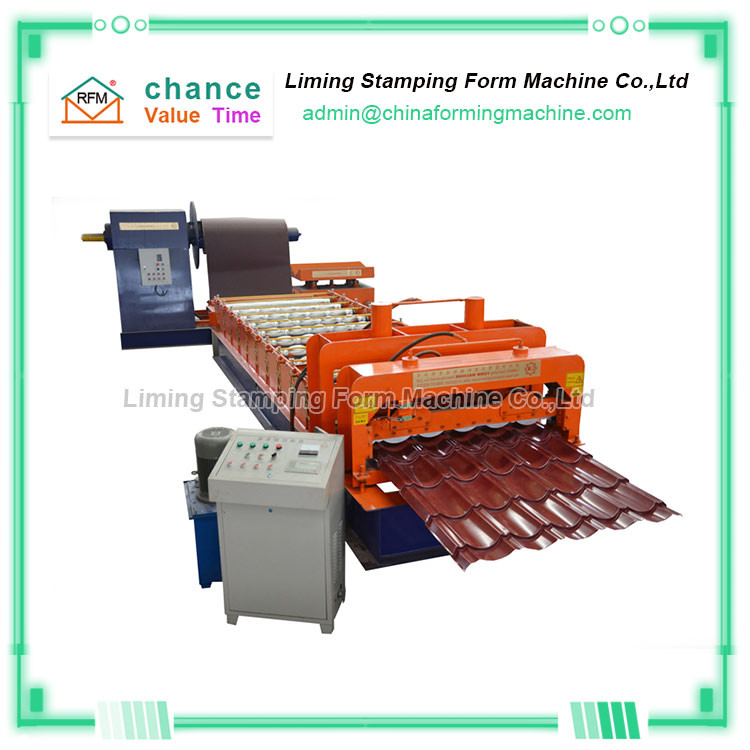

828 Color Steel Glazed Roofing Tile Roll Forming Machine
The 828 Color Steel Glazed roofing Tile Roll Forming Machine has a peak height of 28mm, a center spacing of two adjacent peaks of 207mm, and a center spacing of adjacent peaks (ie practical width) of 828mm. This board type is basically similar to the V840 Color Steel Glazed roofing Tile Roll Forming Machine. The main difference lies in the appearance. The section of the 828 Color Steel Glazed roofing Tile Roll Forming Machine is arc-shaped, and the section of the V840 Color Steel Glazed roofing Tile Roll Forming Machine is linear. The secondary difference is the practical width of the two. The characteristics of the 828 Color Steel Glazed roofing Tile Roll Forming Machine are similar to the V840 Color Steel Glazed roofing Tile Roll Forming Machine.
We are full of confidence in the quality and accuracy of the 828 Color Steel Glazed roofing Tile Roll Forming Machine. We follow the production quality standards of European machines and have established our own testing laboratory. The testing equipment includes Rockwell hardness tester, tachometer, roundness measuring instrument, coating thickness gauge and other multi-function testing machines.
Application range of 828 Color Steel Glazed Roofing Tile Roll Forming Machine
It is widely used in villas, resorts, garden factories, tourist attractions, pavilions, hotels, exhibition halls and other buildings.
Technical parameters of 828 Color Steel Glazed Roofing Tile Roll Forming Machine
| material | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.2-0.8 mm |
| material expand width | 1000mm |
| Efficiency width | 840mm |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| Size | 6000mm×1500mm×1000mm |
| Forming method | roll forming (pre-press forming) |
| Number of forming rows | 10 rows |
