| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-GT3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Control System: | PLC(Touch Screen) |
|---|---|---|---|
| Forming Speed: | 12~25m/min | Weight: | 4.8T |
| Usage: | Roofing | Oil Paint: | National Standard Orange Or As Your Request |
| Condition: | New | Roller Material: | First Grade 45# Steel/GCr15 |
| Product Name: | Bamboo Style Galzed Tile Roofing Sheet Roll Forming Machine | Color: | Customers Requirement |

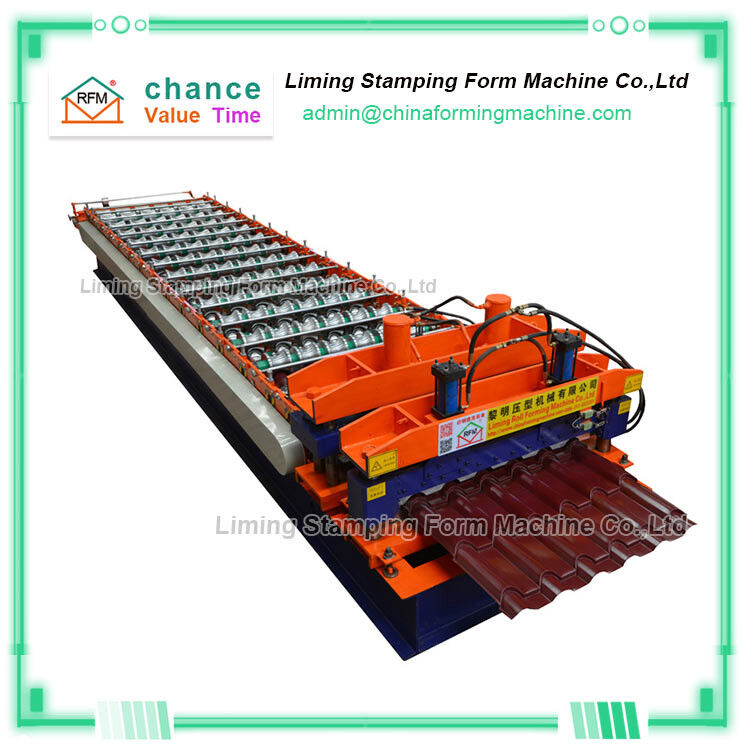

Bamboo Style Galzed Tile Roofing Sheet Roll Forming Machine
The worktable of the Bamboo Style Galzed Tile Roofing Sheet Roll Forming Machine has six workpieces (that is, the tilt of the hexagonal runner). In addition to the first-level mechanical indexing and positioning, there is also a set of precise positioning mechanism to ensure the precise positioning of the mold in each stamping process. The sliding table on which the mold is installed is a box-shaped structure, sliding table guide rail and hollow The upper guide rail has a large contact length. Each time the upper die is punched, there is a secondary punch for the processing of the blank, that is, the upper die is pressed into the tile blank and the upper die rises by 10 mm.
The Bamboo Style Galzed Tile Roofing Sheet Roll Forming Machine also has the advantages of operation, maintenance, maintenance, mechanical debugging and easy mold replacement.
Technical parameters of Bamboo Style Galzed Tile Roofing Sheet Roll Forming Machine
| material | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.2-0.8 mm |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| Size | 6000mm×1500mm×1000mm |
| Forming method | roll forming (pre-press forming) |
| Number of forming rows | 10 rows |
| Name | Bamboo Style Galzed Tile Roofing Sheet Roll Forming Machine |
| PLC | Mitsubishi/DELIXI/SIEMENS |
| Operate Style | Automatic |
| Profiles | As Customers Requirement |
| Color | As Customers Requirement |
| Cutting blade material | Cr12 with quenched treatment |
| Raw material | PPGI |
