| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-DL1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Control System: | PLC(Touch Screen) |
|---|---|---|---|
| Forming Speed: | 12~25m/min | Weight: | 4.8T |
| Oil Paint: | National Standard Orange Or As Your Request | Color: | Customers Requirement |
| Power(w): | 7.5KW/5.5KW | Name: | Metal Step Tiles Roofing Sheets Roll Forming Machine |
| Use: | Roof/wall | Dimension(l*w*h): | 6500*1300*1100 |
| Warranty: | 24 Months |

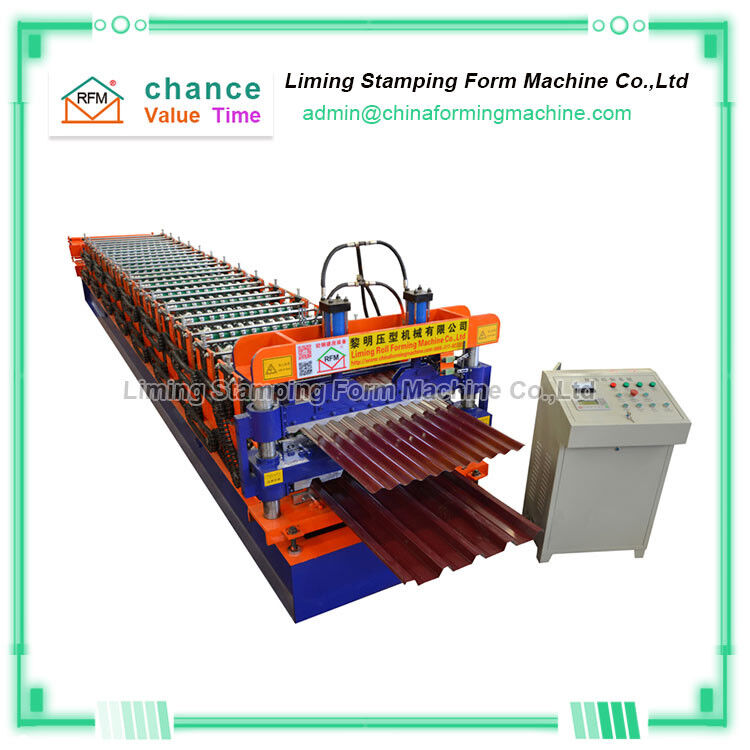

Double Layer Roofing Sheet Roll Forming Machine
All the customers want used the less cost but can get the more profit, In other words spend less money and space but can do more different profiles of the roof sheet, For fit this requirement, We manufactured the Double Layer Roofing Sheet roll forming Machine .
This Double Layer Roofing Sheet roll forming Machine is an advanced metal roll former, which is manufacturing corrugated coloured steel or aluminum roofing tile sheets with a high corrugation speed. This roof tile profiles roll forming machine consists of decoiler, sheet guiding equipment, rollforming system, cutter, support table, hydraulic system, and control system.
Application areas of Double Layer Roofing Sheet roll forming Machine
Roofing Manufacturing
Construction Industry
Channels Making
Technical parameters of Double Layer Roofing Sheet Roll Forming Machine
| NO. | Type | Specification | |
| 1 | Raw material | Type | PPGI |
| Feeding width | 1250 mm | ||
| Thickness | 0.3-0..8 mm | ||
| 2 | Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
| 3 | Main body | Roller station | 13 row |
| Diameter of shaft | 75 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Type | Chinese type | ||
| Frame | 300mm C-beam | ||
| Frame thickness | 16 mm | ||
| Material | Cr 12 | ||
| Operation | Hydraulic automatic | ||
| Working speed | 8-12 m/min | ||
| 4 | Power | Driving way | Chain 1 inch |
| Main motor | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase | ||
| 5 | Control box | Electric box | PLC control system, inventer |
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan | ||
| Language | Chinese and English | ||
