| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-DL2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Weight: | 4.5T |
|---|---|---|---|
| Oil Paint: | National Standard Orange Or As Your Request | Color: | Customers Requirement |
| Power(w): | 7.5KW/5.5KW | Name: | Metal Step Tiles Roofing Sheets Roll Forming Machine |
| Use: | Roof/wall | Dimension(l*w*h): | 6500*1300*1100 |
| Warranty: | 24 Months | Size: | 7.5*1.55*1.55m |
| Main Forming Machine Body: | 300 Mm H Steel |

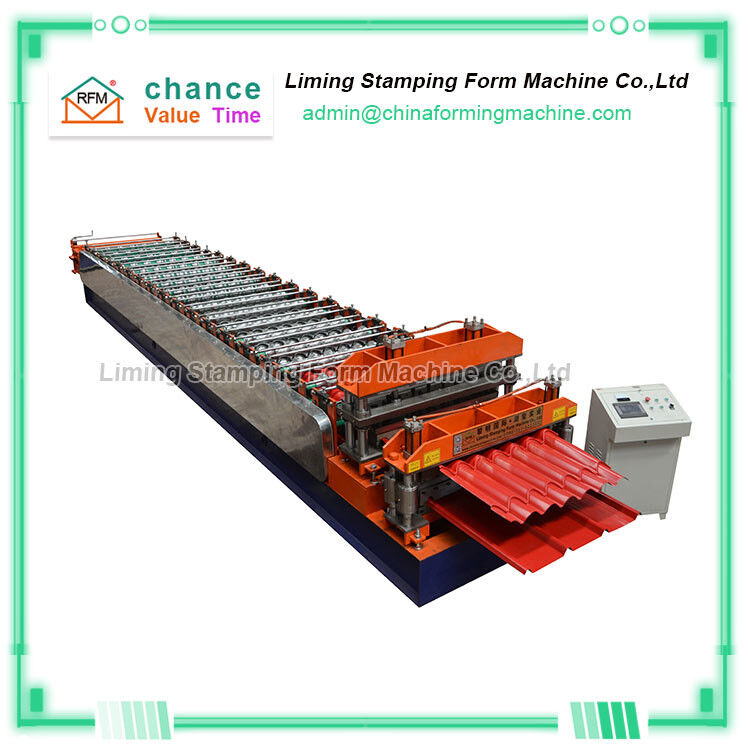

Double Layer Deck Roofing Sheet Roll Forming Machine
Two characteristics of Double Layer Deck Roofing Sheet Roll Forming Machine:
1. Common compared with two single machine, Double Layer Deck Roofing Sheet Roll Forming Machine save one bottom frame, one control box, one motor (while motor need increase power than one single machine)
Do you know that: Double Layer Deck Roofing Sheet Roll Forming Machine can not work at same time, For example, up layer working, down layer can not work, and if u want down layer work, up layer can not work.
If down layer meet problem, u need take up layer roller station out, than fix the down layer problem, are u sure u can settle down it?
As ur like and request to choose double layer deck roofing sheet roll forming machine or three layer machine or single layer machine.
2. For let the customers can save some material, We install one Pre-Cutter in the feeding part of the double layer deck roofing sheet roll forming machine, So the customers can cut the length of the sheet he want and save some length of the material. As I know, The Pre-Cutter can help the customers save USD 300-450/Ton.
Technical parameters of Double Layer Deck Roofing Sheet Roll Forming Machine
| 1 | Suitable to process | Color steel plate, galvanized sheet,aluminum coils and etc. |
| 2 | Width of the feeding material | 1220mm |
| 3 | Roller station | Up layer:9rows |
| Down layer:11rows | ||
| 4 | Thickness of feeding material | 0.3-0.8mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | 45# carbon steel |
| 7 | Diameter of shaft | 70mm |
| 8 | Weight | About 4.5T |
| 9 | Size | 7.5*1.55*1.55m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Wall thickness of main forming machine | 12mm steel plate |
| 12 | Main forming machine body | 300 mm H steel |
