| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-DL5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Dimension(L*W*H):: | About 7.5m*1.5m*1.45m | Brand Name:: | Liming |
|---|---|---|---|
| Forming Speed: | 10~15m/min | Weight: | 3.5T |
| Condition: | New | Power(w): | 4+4KW |
| Name: | Metal Step Tiles Roofing Sheets Roll Forming Machine | Color: | As Customers Requirement |
| Dimension(l*w*h): | About 7.5m*1.5m*1.45m | Warranty: | 24 Months |
| Highlight: | Liming Metal Roofing Sheet Making Machine,3.5T Colour Coated Sheet Making Machine,Liming Colour Coated Sheet Making MachineColour Coated Sheet Making Machine |
||

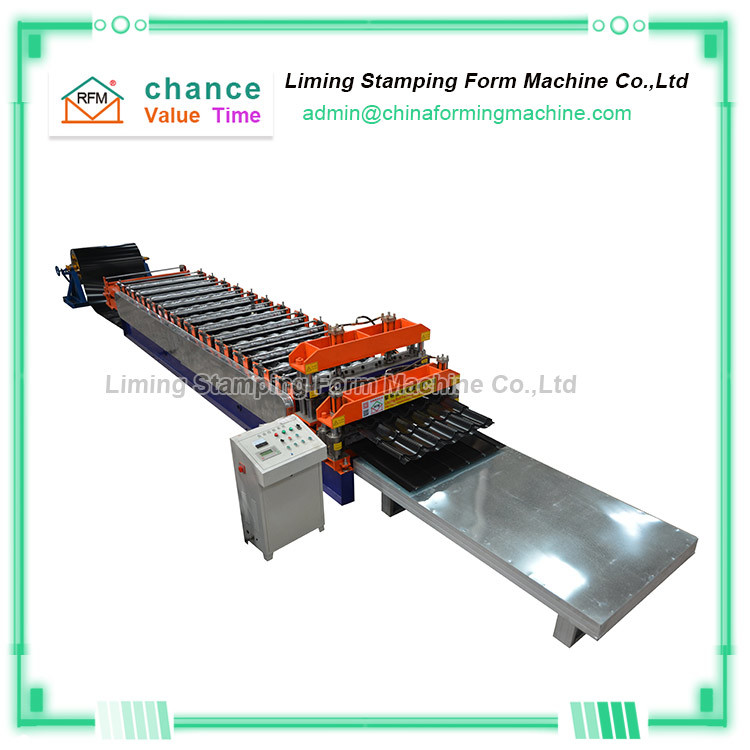

Double Layer Color Coated Metal Roof Sheet Machine
Double Layer Color Coated Metal Roof Sheet Machine can formed two different profiles in one machine, So for some customers if they do not have enough space for two machines, but want to formed more profiles of the sheet . the Double Layer Color Coated Metal Roof Sheet Machine is they first choose. We can let one single sheet and one Glazed Tiles to manufactured one Double Layer Color Coated Metal Roof Sheet Machine , We also can let two single sheet to manufactured one Double Layer Color Coated Metal Roof Sheet Machine , But can not used two Glazed Tiles to manufactured Double Layer Color Coated Metal Roof Sheet Machine , Because the Glazed Tiles Roll Forming Machine have one more make step parts, So if two glazed tiles sheet roll forming machine to manufactured the Double Layer Color Coated Metal Roof Sheet Machine , there is no enough space for the down layer to install the make step part.
Double Layer Color Coated Metal Roof Sheet Machine is widely used for the Roof Sheet or wall panel in the house building. So the Double Layer Color Coated Metal Roof Sheet Machine are the hot sell machine in the market now, The Double Layer Color Coated Metal Roof Sheet Machine can formed Colored Steel Sheet (PPGI) Galvanized Sheet (GI) and Aluminium Plate (AI)
Technical parameters of Double Layer Color Coated Metal Roof Sheet Machine
| Dimension(L*W*H): | About 7.5m*1.5m*1.45m |
| Voltage: | 380V 50Hz 3phases |
| Power(W): | 4+4KW |
| Model Number: | LM-DB |
| Brand Name: | Liming |
| Place of Origin: | China(Mainland) Hebei |
| Production Capacity | 10-15m/min |
| Use | Roof |
| Tile Type | Color Steel |
| Type | Tile Forming Machine |
| Condition | New |
| Name | Best Sell Color Steel Roofing Sheet Forming Machine |
| PLC | Mitsubishi/DELIXI/SIEMENS |
| Operate Style | Automatic |
| Profiles | As Customers Requirement |
| Color | As Customers Requirement |
| Cutting blade material | Cr12 with quenched treatment |
| Raw material | PPGI |
| Motor Brand | China Famous Brand |
| Thickness | 0.3-0.7mm |
| Feeding width | As Customers Requirement |
