| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-CT1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| The Total Length Of The Equipment: | Length 4.77m Width 1.3m Height 1.2m | Brand Name:: | Liming |
|---|---|---|---|
| Forming Speed: | 10~18m/min | Weight: | 4.5tons |
| Wheel Material: | 45# Steel Hard Chrome Plating | Set Of: | Galvanized Pipe Finishing, Electrostatic Spraying |
| Name: | Metal Step Tiles Roofing Sheets Roll Forming Machine | Color: | As Customers Requirement |
| Dimension(l*w*h): | About 7.5m*1.5m*1.45m | Warranty: | 24 Months |
| Highlight: | 18m/Min Corrugated Roll Former,4.5tons Roof Tiles Making Machine,18m/Min Roof Tiles Making Machine |
||

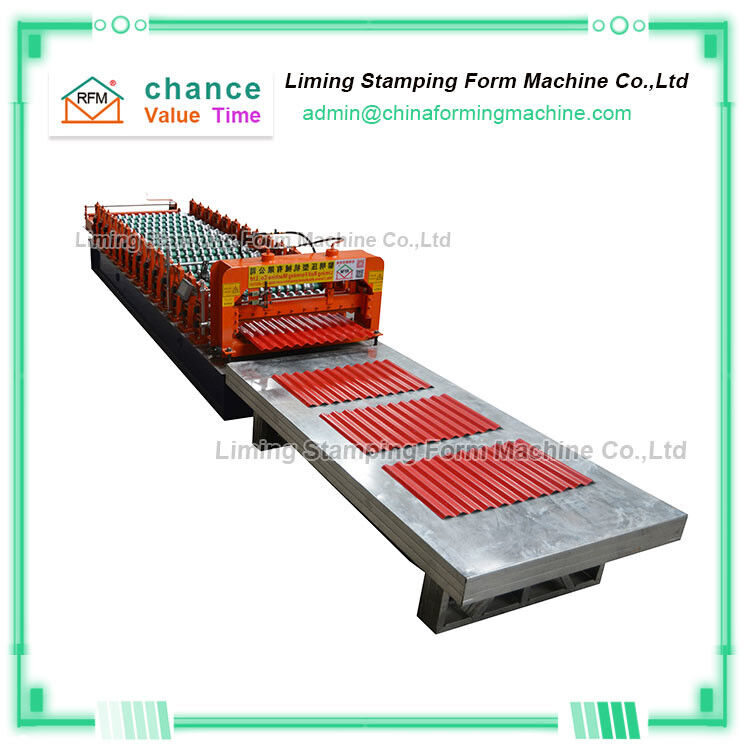

Automatic Corrugated Tile Roofing Sheets Roll Forming Making Machine
The Automatic corrugated tile roofing sheets roll forming making machine is mainly composed of a discharge machine, a feed introduction platform, a forming host, a punching device, a forming and shearing device, a hydraulic station, a computer control cabinet, etc. The whole machine adopts industrial computer PLC control, electric operation, Automatic material cutting, automatic counting, simple operation,The Automatic corrugated tile roofing sheets roll forming making machine used for processing light steel structure roof panels, the formed panels produced are flat, solemn and elegant, beautiful and novel, uniform corrugated, high utilization rate, and high strength, and are highly praised by many users .The Automatic corrugated tile roofing sheets roll forming making machine can meet the different needs of customers and has the characteristics of simple operation, easy maintenance, and automatic operation. The Automatic corrugated tile roofing sheets roll forming making machine is suitable for the internal and external walls of industrial and civil buildings. Laying is non-directional, easy to install, quick to construct, and can be used as a horizontal mounting board.
Technical parameters of Automatic Corrugated Tile Roofing Sheets Roll Forming Making Machine
| The total length of the equipment | Length 4.77m width 1.3m height 1.2m |
| The motor power | Motor 5.5Kw pump station 4Kw working voltage 380V or customized |
| Production speed | 10- 18 m/min |
| The transmission way | 1 inch chain drive |
| rack | Large frame: 350H section steel |
| shaft | 9 row of axis, diameter 70 axis |
| The thickness of the plate | 14 mm |
| Set of | Galvanized pipe finishing, electrostatic spraying |
| Wheel material | 45# steel hard chrome plating |
| The molding part | Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast. |
| Numerical control system | Easy control, letter press the button screen, counter |
| shear | Welded iron frame, hydraulic cylinder automatic shear |
| The thickness of the plate | 0.3- 0.8 mm |
| Into the plate width | 1000 mm |
| accessories | Instruction book feeding rack a set |
| Warranty period | 24months |
