| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-CT2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Main Motor Power: | 3kw | Brand Name:: | Liming |
|---|---|---|---|
| Forming Speed: | 10~18m/min | Total Weight: | 3.8T |
| Wheel Material: | 45# Steel Hard Chrome Plating | Set Of: | Galvanized Pipe Finishing, Electrostatic Spraying |
| Hydraulic Station Power: | 3kw | Color: | As Customers Requirement |
| Dimension(l*w*h): | About 7.5m*1.5m*1.45m | Warranty: | 24 Months |

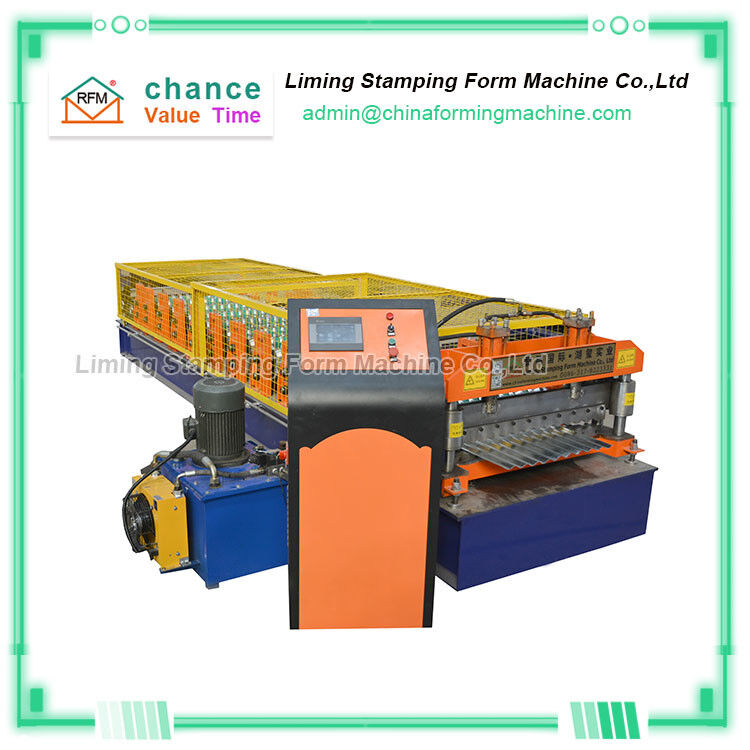

Corrugated Tile Steel Roofing Sheet Roll Forming Machine
Corrugated steel tiles produced by a Corrugated Tile Steel Roofing sheet Roll Forming Machine
are characterized by their low height and smooth lines with flexibility to bend, ideal for application on flat or arched metal roofs, side closures and metal facades of industrial or commercial buildings. Especially used on roofs up to 15 meters long and for curved roofing with radius above 20 meters because Corrugated Tile Steel Roofing sheet Roll Forming Machine does not need to be calendered.
Technical parameters of Corrugated Tile Steel Roofing Sheet Roll Forming Machine
| Main Motor Power | 3kw |
| Hydraulic Station Power | 3kw |
| Hydraulic Oil Pump | CB-E310 |
| Sprocket | P-25.4 |
| Roller Station | 9 |
| Yield strength | 32MPa |
| Diameter of Principal Axis | 70MM |
| Material of Roller | 45#steel hard chrome plating |
| Processing Speed | 8m/min |
| Installation Dimension (L*W*H) | 6.5m*1.5m*0.8m |
| Total Weight | 3.8T |
| Equipment Parts | roll forming system, hydraulic system, PLC frequency conversion control system, counter and cutting system. |
| Production | according to customers' demand |
