| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-CT3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Material Width: | 1000 Mm | Brand Name:: | Liming |
|---|---|---|---|
| Forming Speed: | 10~18m/min | Total Weight: | 3.8T |
| Wheel Material: | 45# Steel Hard Chrome Plating | Diameter Of Shaft: | Φ70,45#steel |
| Hydraulic Station Power: | 3kw | Color: | As Customers Requirement |
| Thickness: | 0.3-0.6 Mm | Warranty: | 24 Months |

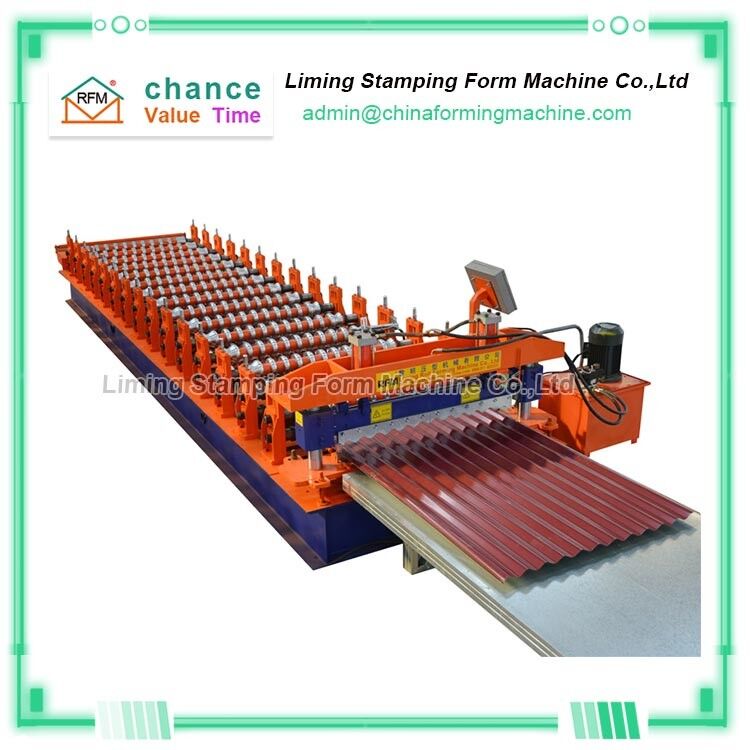

Metal Corrugated Tile Colored Steel Roofing Sheet Roll Forming Machine
Commitment of Fully Metal Corrugated Tile Colored Steel Roofing Sheet Roll Forming Machine
In correct operation and maintenance, the machine is guaranteed for 2 years from the time of delivery, excluding electronic components.
Installation service of Metal Corrugated Tile Colored Steel Roofing Sheet Roll Forming Machine
If installation is required, WE will send technicians to the buyer's factory abroad to help adjust the machine free of charge.
The buyer should assist the United States in obtaining visas for Chinese technicians, and should pay for round-trip air tickets and local accommodation.
If installation is required, the buyer should make the following preparations before the technicians arrive.
Promised after-sales support for the fully Metal Corrugated Tile Colored Steel Roofing Sheet Roll Forming Machine
Our engineers can provide remote video technical support and online support to teach your staff.
Technical parameters of Metal Corrugated Tile Colored Steel Roofing Sheet Roll Forming Machine
| Metal Corrugated Tile Roofing Sheet Roll Forming Machine parameter | |
| Material Width | 1000 mm |
| Effctive width | 850 mm |
| Production Capacity | 8-12 m/min |
| Thickness | 0.3-0.6 mm |
| Dimension | 6000mm*1550mm*1300mm |
| Diameter of shaft | Φ70,45#steel |
| Material of roller | 45#steel,Chrome |
| Main motor power | 4 KW |
| Hydraulic station | 3 KW |
| Number of rollers | 10 stand rollers |
| Control system | PLC |
| Chain | 1 inch |
