| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-CT6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Material Feeding Width: | 925~1220mm | Brand Name:: | Liming |
|---|---|---|---|
| Material Thickness: | 0.3~1.0mm | Total Weight: | About 4.0 T |
| Under Frame: | 350 H-beam | Diameter Of Shaft: | Φ70,45#steel |
| Hydraulic Station Power: | 3kw | Color: | As Customers Requirement |
| Shafts Diameter: | 70mm | Warranty: | 24 Months |

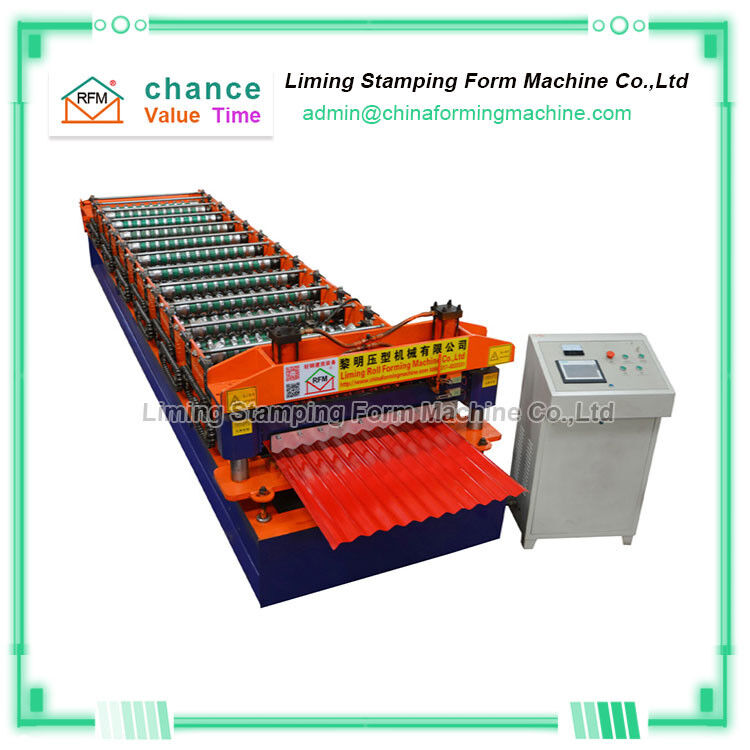

1064 Aluminium Corrugated Iron Sheet Making Machine
Features of 1064 aluminum corrugated iron sheet making machine (1)
Roll forms light, strong and versatile corrugated metal panel.
Features of 1064 aluminum corrugated iron sheet making machine (2)
According to customer’s requirement, the technical parameters of the roll forming machine are different.
Features of 1064 aluminum corrugated iron sheet making machine (3)
The design of the roll forming machine is convenient to adjust, for it owns reasonable structure,compact shape, high precision and high efficiency.
Features of 1064 aluminum corrugated iron sheet making machine (4)
Corrosion resistance, aging resistance and long service life, the service life of the color steel press type equipment is longer than other's.
Technical parameters of 1064 Aluminium Corrugated Iron Sheet Making Machine
| No | Item | Parameter |
| 1 | Material feeding width | 925~1220mm |
| 2 | Material thickness | 0.3~1.0mm |
| 3 | Uncoiler | Manual Uncoiler |
| 4 | Loading weight | 5ton |
| 5 | Forming speed | 8-15m/min |
| 6 | Forming Steps | 16stations |
| 7 | Shafts materials | 45# high quality steel |
| 8 | Shafts diameter | 70mm |
| 9 | Roller materials | 45# high quality steel, hard chrome coated 0.05mm |
| 10 | Transmission | Chains-sprockets |
| 11 | Main motor power | 7.5kw |
| 12 | Cutting blade | Cr12 with quenched treatment 60-62 |
| 13 | Hydraulic power | 5.5kw |
| 14 | This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | |
| 15 | Length cut Accuracy | ±1mm |
| 16 | PLC control system | Omron Japan |
| 17 | Frequency converter | TAIAN |
| 18 | Screen | TouchWin |
| 19 | Voltage | 380V/50HZ/3Phase |
| 20 | Total weight | Approx 7 Ton |
| 21 | Overall dimensions | 8600x1500x1300mm |
