| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-CT7 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Material Feeding Width: | 914–1219 | Brand Name:: | Liming |
|---|---|---|---|
| Material Strength: | G300–G550 | Total Weight: | About 3.5 T |
| Under Frame: | 350 H-beam | Diameter Of Shaft: | Φ70,45#steel |
| Hydraulic Station Power: | 3kw | Color: | As Customers Requirement |
| Shafts Diameter: | 70mm | Warranty: | 24 Months |

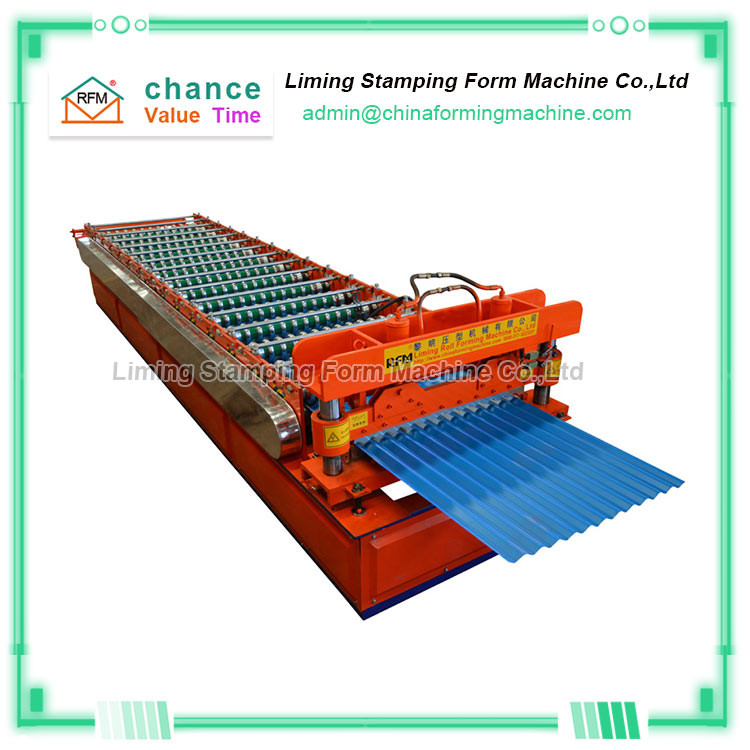

Automatic Corrugation Roofing Sheet Making Machine
Automatic Corrugation Roofing Sheet Making Machine for export. Since 2012, the speed of Roofing Roll Forming Machine is driven by Inverter technology which makes machine run faster and stop smoothly. Hence, machine elements are protected and power consumption is decreased.
Automatic Corrugation Roofing Sheet Making Machine Have Four Speed Levels:
—— 12-14 m/min (EECO)
—— 18-20 m/min (Eco, standard)
—— 32-36m/min (hi-speed)
—— 55-60m/min (super hi-speed)
Technical parameters of Automatic Corrugation Roofing Sheet Making Machine
| Automatic Corrugation Roofing Sheet Making Machine | |||
| Machine specification | Electric power | Kw | 5.5 -11 |
| Machine Weight | Tons | 8.0–13.0 | |
| Machine Dimensions | m | 9.0 x 1.8 x 1.5 | |
| Station quantity | stations | 18–24 | |
| Raw material | Steel Thickness (BMT) | mm | 0.2–0.6 |
| Coil Width | mm | 914–1219 | |
| Material Strength | G300–G550 | ||
| Production specification | Forming speed | m/min | 20-24 (or customizable speed) |
| Control system | PLC, HMI | ||
| Rolling transmission | Hydraulic, Inverter | ||
| Cutting and punching system | Hydraulic | ||
| Length Tolerance | mm | ± 2 | |
