| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RS7 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Blade Material: | Cr12mov | Brand Name:: | Liming |
|---|---|---|---|
| Material Strength: | G300–G550 | Total Weight: | 3.8T |
| Under Frame: | 350 H-beam | Cutting Accuracy: | ±2mm |
| Hydraulic Station Power: | 4kw | Thickness: | 0.25-0.75mm |
| Shafts Diameter: | 70mm | Warranty: | 24 Months |

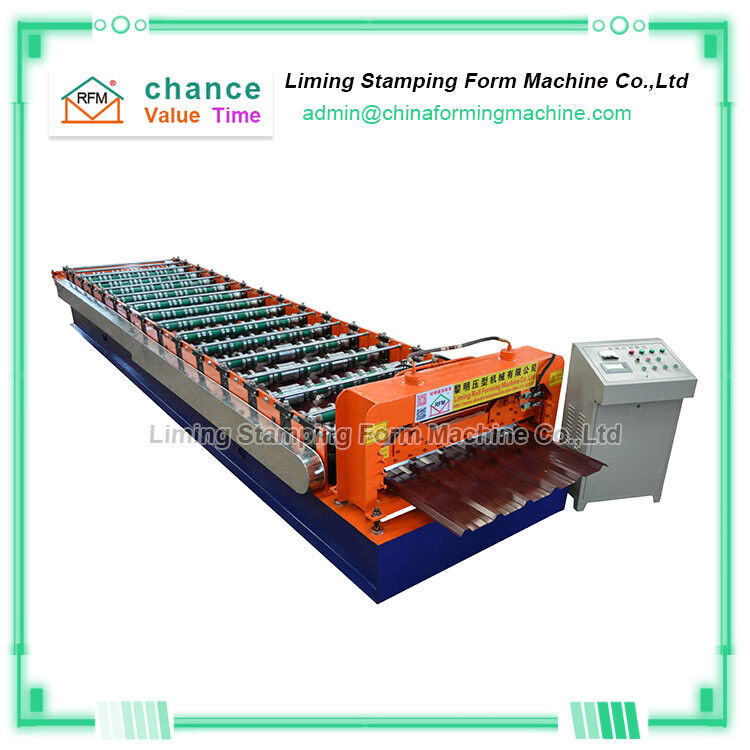

High Build Roofing Sheet Roll Forming Machine
With our vast industrial experience, we are engaged in offering a wide range of Roofing Sheet Roll Forming Machine. This product is manufactured using advanced techniques and with highly skilled professionals. Furthermore, offered Roofing Sheet Roll Forming Machine is available at market leading price.
Features Of High Build Roofing Sheet Roll Forming Machine
- Optimum quality
- Easy to use
- High performance
The advantages of choosing our High Build Roofing Sheet Roll Forming Machine
1. We are a factory with nearly 20 years experiences on Roll Forming Machines;
2. We have our own research and development team with strong ability to solve all kinds of problems;
3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
Technical parameters of High Build Roofing Sheet Roll Forming Machine
| High Build Roofing Sheet Roll Forming Machine | |||
| Main roll forming machine | Raw material width | mm | 1250 |
| Working Speed | m/min | 8-15mm | |
| roller stations | station | 14 | |
| Motor power | Main motor power | kw | 4 |
| Hydraulic Station Power | kw | 4 | |
| Hydraulic Station Pressure | Mpa | 12 | |
| Otehrs | Electrical Control System | PLC brand | Panasonic Japan |
| Material Thickness | mm | 0.25-0.8mm | |
| Cutting accuracy | mm | ±2 | |
