| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RS10 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Material Feeding Width: | 925~1220mm | Shafts Diameter: | 70mm |
|---|---|---|---|
| Material Strength: | PPGI&GI 0.3-0.8MM | Total Weight: | 5ton |
| Under Frame: | 350 H-beam | Cutting Accuracy: | ±2mm |
| Hydraulic Station Power: | 4kw | Thickness: | 0.3-0.8mm |
| Warranty: | 24 Months | Voltage: | 380V 50Hz 3phases |

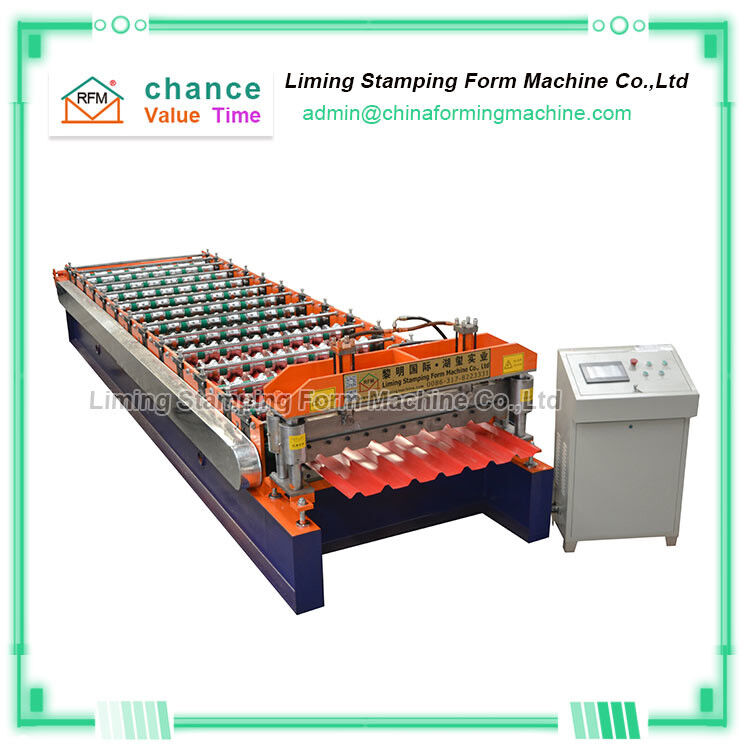

Trapezoidal Sheet Metal Roof Bending Roll Forming Machine
Trapezoidal sheet metal roof bending roll forming machine features: the profile rolled by the Trapezoidal sheet metal roof bending roll forming machine is solemn and elegant, beautiful and novel, with a flat appearance, uniform corrugation, high strength, high production automation, low cost, and durability.
Advantages of trapezoidal sheet metal roof bending machine:
High strength: Using high-strength steel plate as the base material (tensile strength 5600KG/CM), plus the most advanced design and roll forming, it has excellent structural characteristics.
Fire protection: The surface material and heat preservation material of the color composite sandwich panel are non-combustible materials, which can fully meet the requirements of fire protection regulations.
Fast installation: The composite board is light in weight, spliced installation and can be cut at will, which determines its ease of installation, which can greatly improve efficiency and save construction time.
Technical parameters of Trapezoidal Sheet Metal Roof Bending Roll Forming Machine
| No | Item | Parameter |
| 01 | Material feeding width | 925~1220mm |
| 02 | Material thickness | 0.3~1.0mm |
| 03 | Uncoiler | Manual Uncoiler |
| 04 | Loading weight | 5ton |
| 05 | Forming speed | 8-15m/min |
| 06 | Forming Steps | 16stations |
| 07 | Shafts materials | 45# high quality steel |
| 08 | Shafts diameter | 70mm |
| 09 | Roller materials | 45# high quality steel, hard chrome coated 0.05mm |
| 10 | Transmission | Chains-sprockets |
| 11 | Main motor power | 11kw |
| 12 | Cutting blade | Cr12 with quenched treatment 60-62 |
| 13 | Hydraulic power | 5.5kw |
| 14 | This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | |
| 15 | Length cut Accuracy | ±1mm |
| 16 | PLC control system | Omron Japan |
| 17 | Frequency converter | TAIAN |
| 18 | Screen | TouchWin |
| 19 | Voltage | 380V/50HZ/3Phase |
| 20 | Total weight | Approx 6.2t |
| 21 | Overall dimensions | 8600x1500x1300mm |
