| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RS11 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Dimension: | 5800mm*1300mm*950mm | Shafts Diameter: | 70mm |
|---|---|---|---|
| Material Strength: | PPGI&GI 0.3-0.8MM | Total Weight: | 5ton |
| Under Frame: | 350 H-beam | Transmission Type: | Link Chain |
| Hydraulic Station Power: | 3kw | Thickness: | 0.3-0.8mm |
| Warranty: | 24 Months | Voltage: | 380V 50Hz 3phases |

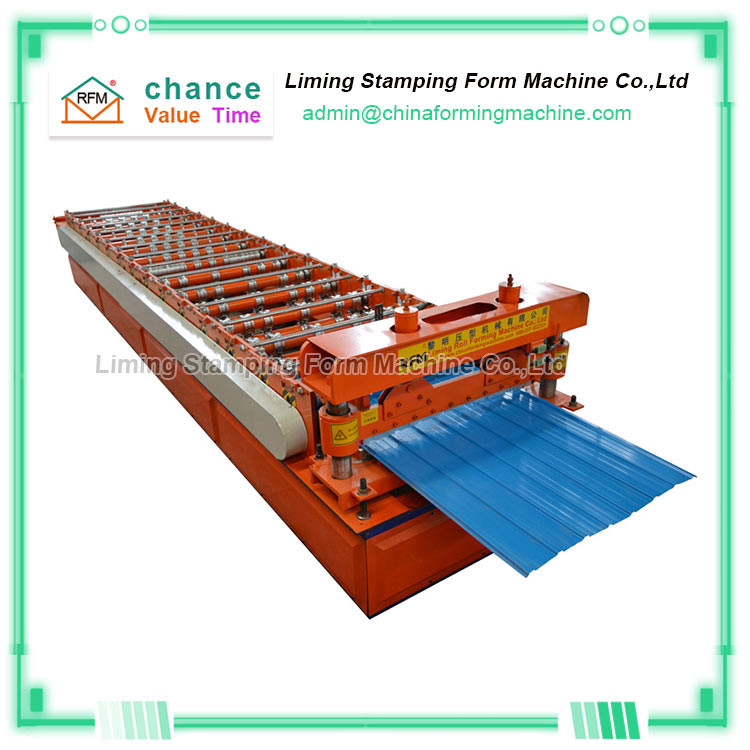

Building Color Steel Metal Roof Sheet Making Machine
The purpose of the building color steel metal roof sheet making machine: It is mainly suitable for large and medium-sized enterprises and civil buildings, such as factories, garages, hangars, stadiums, exhibition halls, theaters, etc.
Advantages of building color steel metal roof sheet making machine:
Fast installation: The composite board is light in weight, spliced installation and can be cut at will, which determines its ease of installation, which can greatly improve efficiency and save construction time.
Durability: A variety of studies have shown that, and it has been widely used in foreign countries for more than 40 years, the shelf life of color steel plates treated with special coatings is 10-15 years. Afterwards, anti-corrosion coatings are sprayed every 10 years, and the life of the plates can reach more than 35 years.
Beautiful: The clear lines of the profiled steel plate are as many as dozens of colors, which can meet the needs of any style of building and achieve satisfactory results.
Technical parameters of Building Color Steel Metal Roof Sheet Making Machine
| Dimension | 5800mm*1300mm*950mm |
| Forming shaft | 45# tempering, solid shaft |
| Forming wheel | 45# forging, hard chromium plating |
| Transmission type | Link chain |
| Motor | 3kw |
| Forming rows | 9 rows |
| Cutting system | Automatic length adjustable cutter |
| Pump station motor | 3KW |
| Cutting mould | Gr12 |
| Forming speed | 8-10m/min |
| Press thickness | 0.2-1.0mm |
| Press width | 1000mm |
| Total equipment | Decoiler+rolling machine+2m receiving table |
