| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RS11 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Ondition: | New | Shafts Diameter: | 70mm |
|---|---|---|---|
| Material Strength: | PPGI&GI 0.3-0.8MM | Total Weight: | 3-4T |
| Under Frame: | 350 H-beam | Use: | Roof And Wall |
| Hydraulic Station Power: | 3kw | Thickness: | 0.3-0.8mm |
| Warranty: | 24 Months | Voltage: | 380V 50Hz 3phases |

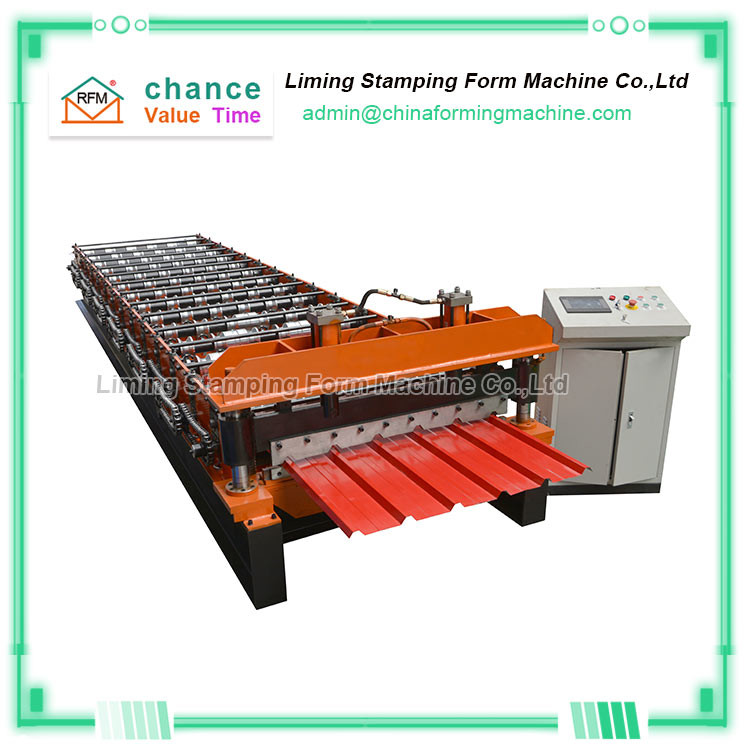

Good Price Metal Roofing Sheet Roll Forming Machine
Good price metal roofing sheet roll forming machine produces metal roofing panels. What we supply is not only one machine, it is the whole production line, including decoiler, mail roll forming machine, receiving table. Re to the decoiler, there are three type, manual type, electric type and hydraulic type. For the receiving table, there are manual type and automatic type.
There are three key points while we are manufacturing the good price metal roofing sheet roll forming machine one is the details while manufacturing good price metal roofing sheet roll forming machine. we always pay much more attention on processing details, even the screws and nuts are national standard with zinc plating, so that we can ensure the precise forming and durable quality.
Technical parameters of Good Price Metal Roofing Sheet Roll Forming Machine
| ondition | New |
| Use | Roof and wall |
| Brand Name | Chaoyi |
| Voltage | 380V 50Hz 3phasesor according to your need |
| Warranty | One year |
| Forming Steps | 11-16, according to the drawing. |
| Type | Tile Forming Machine |
| Production Capacity | 0-15m/min |
| Model Number | LIMING |
| Dimension(L*W*H) | 7200mm*1300mm*1100mm |
| Main Frame | 350# steel. More stable and no shaking |
| Middle Plate | 16mm. We use thicker plates to ensure stability |
| of our products. | |
| Dimater of shaft | 70mm |
| Roller material | High grade 45# steel. Hard chrome plating |
| Cutting type | Hydraulic cutting type |
| Cutting blade | Cr12 |
| Tile Type | Colored Steel |
| Power(W) | 3KW |
| Weight | 3-4t |
| Color | As your request |
| Material thickness | 0.2-0.8mm or As your request |
| Material width | 1000mm or As your request |
| Transmission type | Chain transmission+deceleration motor |
| Automation | Full-automatic |
| Control system | PLC |
| Place of Origin | Hebei, China |
| After-sales Service Provided | Engineers available to service machinery overseas |
