| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-CT8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Ondition: | New | Material: | PPGI,GI,AI |
|---|---|---|---|
| Material Strength: | PPGI&GI 0.3-0.8MM | Total Weight: | 4-5ton |
| Use: | Roof And Wall | Total Powder: | 8.5kw |
| Thickness: | 0.2-0.8mm | Warranty: | 2 Years |
| Yield Strength: | Q235 | PLC: | Delta |

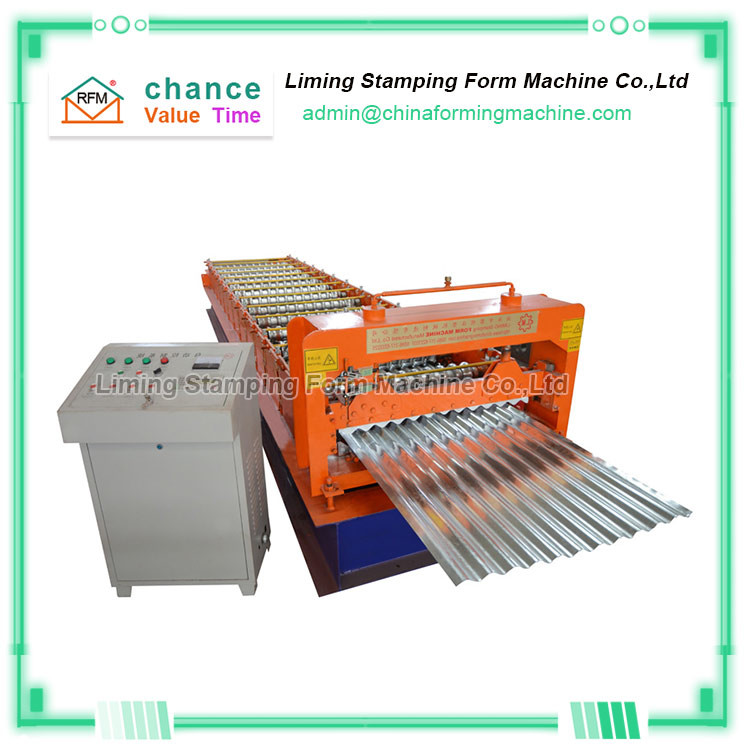

770 Corrugated Metal Roofing Sheet Roll Forming Machine
The 770 corrugated metal roofing sheet roll forming machine has been used for centuries to provide safety for homes and businesses. Modern engineering technology has changed this long tradition and brought it into the 21st century through new materials and manufacturing innovations. Although the old corrugated metal roof looks rustic or unattractive, the metal roof produced by the 770 corrugated metal roofing sheet roll forming machine has functional strength and aesthetic beauty. The 7770 corrugated metal roofing sheet roll forming machine can produce a variety of materials, with a classic and practical style.
Technical parameters of 770 Corrugated Metal Roofing Sheet Roll Forming Machine
| Suitable Material | Material | GI, PPGI, PPGL |
| Thickness | 0.2-0.8mm | |
| Yield strength | Q235 | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 11 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 70mm | |
| Material of cutting blade | Cr12 Heat Treatment | |
| Cutting Mode | Hydraulic Guide Column | |
| Speed | 20-25m/min | |
| Side plate thickness | 16 mm | |
| Chain size | 1 inch | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 5800mm*1300mm*1500mm | |
| Weight(About) | 2.5 tons | |
| Length measurement | Encoder | |
| Control mode | PLC | |
| Operating mode | Button +Touch screen | |
