| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-CT9 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 300set/Year |
| Ondition: | New | Material: | PPGI,GI,AI |
|---|---|---|---|
| Coil Width: | 914, 1000, 1220 Or 1250 Mm | Total Weight: | 4.5ton |
| Use: | Roof And Wall | Total Powder: | 8.5kw |
| Thickness: | 0.3-0.8mm | Warranty: | 2 Years |
| Yield Strength: | Q235 | PLC: | Delta |

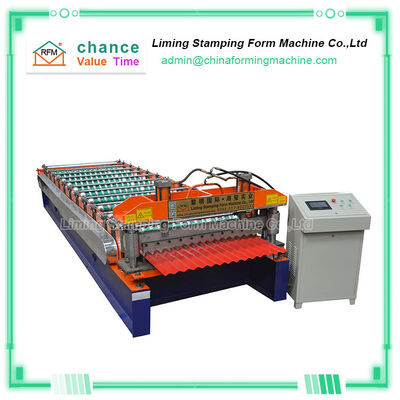

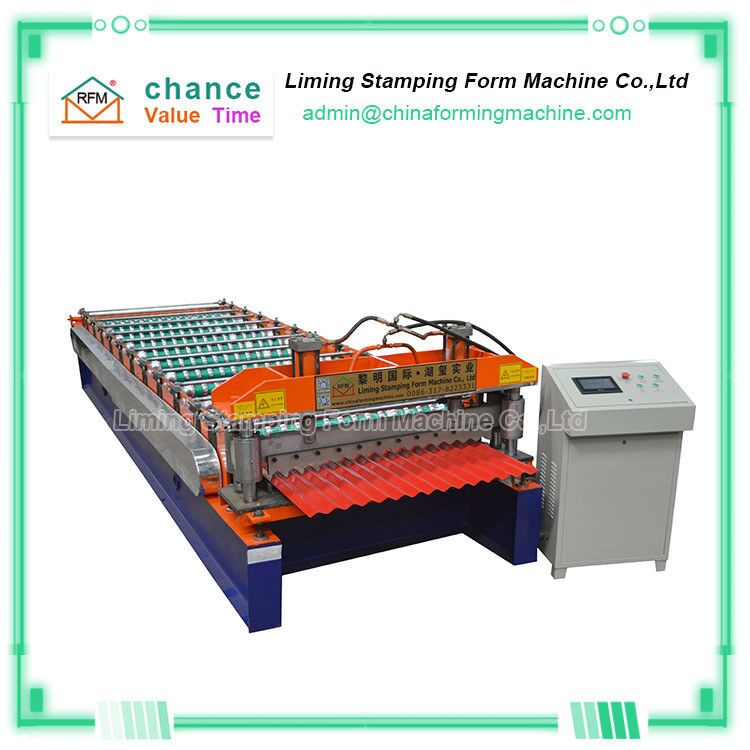

Tanzania Corrugated Metal Roofing Sheet Roll Forming Machine
Since this process was first developed in 1840, corrugated metal roofs have been used.
Therefore, Tanzania's corrugated metal roofing sheet roll forming machine has a long history.
The material appearance and manufacturing method of the corrugated metal roof produced by the Tanzania corrugated metal roofing sheet roll forming machine are the easiest to distinguish. Traditionally, materials are cold rolled after casting to form periodic wrinkles in the metal. This is not the case for appearance cold rolling. Cold rolling can significantly increase the strength of the material and enhance its physical and mechanical durability. Reinforce the material only in the direction parallel to the corrugations. Therefore, it is very necessary to choose high-quality Tanzania corrugated metal roofing sheet roll forming machine.
Technical parameters of Tanzania Corrugated Metal Roofing Sheet Roll Forming Machine
| Name | Tanzania Corrugated Metal Roofing Sheet Roll Forming Machine |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range | 914, 1000, 1220 or 1250 mm. |
| According to your actual drawing. | |
| Electric Power | 380V, 50 Hz, 3 phase |
| or according to your need. | |
| Dimension | About 7.2*1.3*1.1m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet | You can set the length according to your need. |
| It is controlled by PLC | |
| length accuracy: ±1mm |
