| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD38 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type: | Colored Steel | Dimension(L*W*H): | 8500*1550*1510mm |
|---|---|---|---|
| Raw Material: | Galvanized Steel Sheet | Warranty: | 2 Years |
| Profiles: | Metal Roof Forming Machine | Thickness: | 0.7-1.3mm |
| Control System: | Taiwan Delta | Speed: | 8-12m/min |
| Profile Design: | Custom | ||
| Highlight: | Color Steel Rolling Shutter Machine,Galvanized Rolling Shutter Machine,8500x1550x1510mm shutter making machine |
||

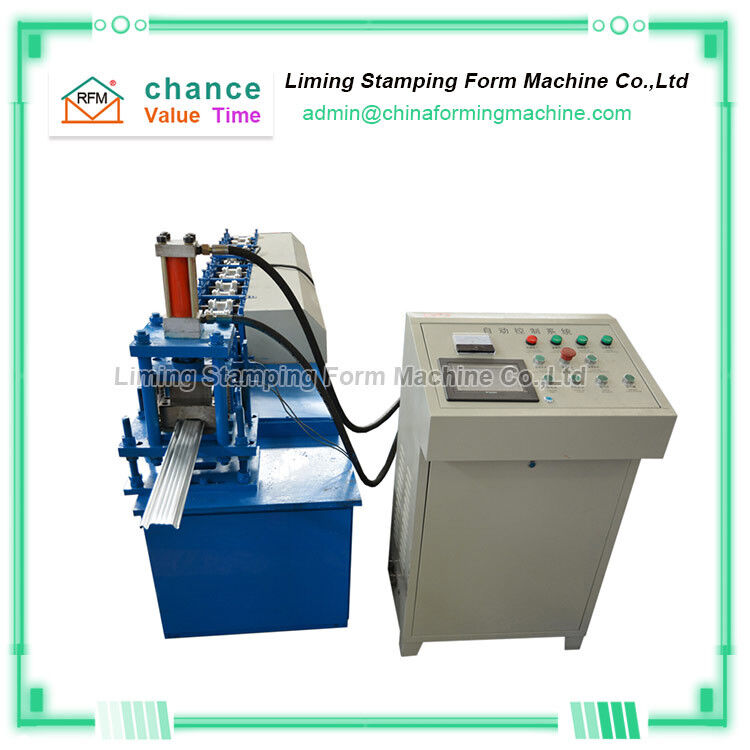

Galvanized Color Steel Rolling Shutter Door Forming Machine
1. The galvanized color steel rolling shutter door forming machine has stable performance, reliable quality and convenient operation;
2. The ggalvanized color steel rolling shutter door forming machine can be designed and manufactured according to customer requirements;
3. Our factory is responsible for providing services such as commissioning and operation guidance of the galvanized color steel rolling shutter door forming machine.
The galvanized color steel plate rolling door produced by thegalvanized color steel rolling shutter door forming machine has the functions of anti-theft, rainproof, dustproof and sound insulation.
The galvanized color steel plate rolling door body produced by the galvanized color steel rolling shutter door forming machine has a high degree of standardization, convenient assembly, strong toughness and durability, novel and unique appearance, and beautiful appearance.
Technical parameters of Galvanized Color Steel Rolling Shutter Door Forming Machine
| 1 | Item. | parameters. | |||||
| 2 | Main motor power | 4kw, 3 phase | |||||
| 3 | Hydraulic motor power | 4kw | |||||
| 4 | Hydraulic Pressure | 10-12MPa | |||||
| 5 | Voltage | 380V /3phase/ 50 HZ (or as required) | |||||
| 6 | Control System | PLC Delta Inverter/Panasonic | |||||
| 7 | Main Frame | 300mm H-Beam | |||||
| 8 | Backboard Thickness | 14mm | |||||
| 9 | Chain Size | 20mm | |||||
| 10 | Feeding Material | GI/PPGI/Aluminum | |||||
| 11 | Feeding Thickness | 0.3-1.2mm | |||||
| 12 | Productivity | 20-30m/min | |||||
| 13 | Roll Station | 12-16 steps | |||||
| 14 | Roller Diameter | 50mm | |||||
| 15 | Roller material | 45# steel, heat treatment | |||||
| 16 | Cutter material | Cr12 , quenched | |||||
| 17 | Cr-Plating Size | 0.05mm | |||||
| 18 | Overall Size | 4500×800×1000mm | |||||
| 19 | Total Weight | 3.2T | |||||
