| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Rolling1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Productivity: | Shutter As The Drawing | After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning |
|---|---|---|---|
| Dimension(L*W*H):: | 5m*0.6m*1.0m | Number Of Forming Steps: | 14 Steps |
| Warranty:: | 1 Year | Thickness: | 0.8-1.2 Mm |
| Material:: | Colored Steel Sheet, Galvanized Steel Sheet, Aluminum Sheet | Certification: | CE、BV、ISO |
| Material Of Shafts: | 45# Steel Adjustable Treatment. Outer Diameter 42 Mm | Forming Roller Station: | 12 Stations |
| Highlight: | 14 steps rolling shutter machine,aluminized zinc coil rolling shutter machine,aluminized zinc coil shutter making machine |
||

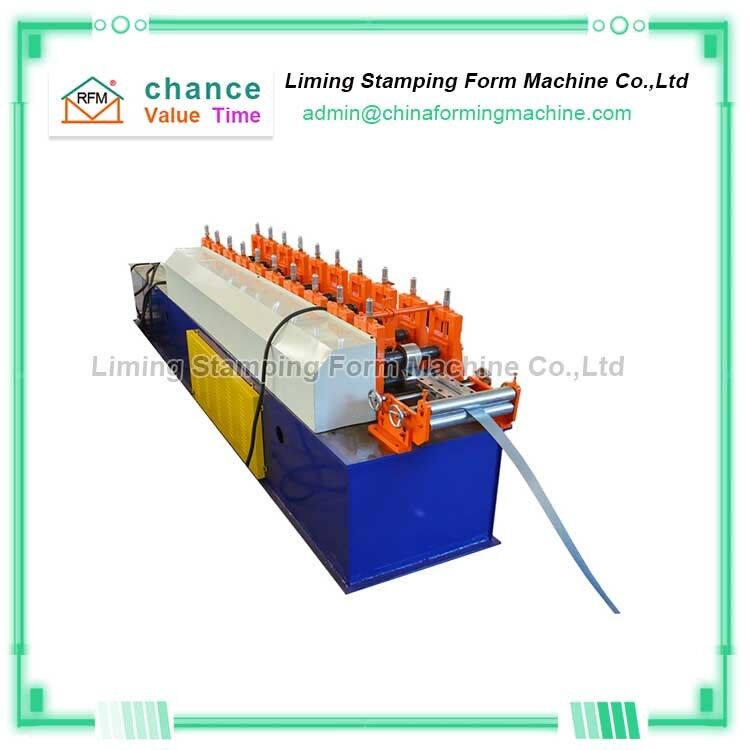

Rolling Shutter Door Making Machine For Building Materials Supermarket
Rolling shutter door manufacturing machine is a machine for manufacturing rolling shutter doors. The thickness of our machine can be 0.7-1.4mm, and the shape will be designed according to your requirements.
The right rolling door products produced by the rolling door manufacturing machine are widely used in commercial facades, garages, shopping centers, hospitals, factories, etc. due to their easy installation and corrosion resistance.
The rolling door manufacturing machine is composed of an unwinding device, a feeding device, a forming host, a shearing device, and a rewinding device. The whole machine is controlled by a PLC programming system, and the operation is simple and easy to learn. At the same time, the rolling door manufacturing machine is also equipped with die cutting, thus ensuring The rolling door products produced have neat cross-sections and exquisite appearance, which can be used directly for sale or used by themselves.
Technical Parameters Of Rolling Shutter Door Making Machine For Building Materials Supermarket
| Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| Processing thickness (mm) | 0.3-0.8mm |
| Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| Material of shafts | 45# steel |
| Diameter of shafts | 70mm or as your customized |
| Forming speed | 20-25 m/min |
| Under frame | 300 H-beam |
| Sidewall | 16mm |
| Connect bar | 25mm, zinc plated |
| Forming steps | 11rollers |
| Control system | Delta PLC and Inverter |
| Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| Drive mode | Chain and sprocket, chain size 1 inch |
| Main motor | 4w |
| Hydraulic pump station | 4w |
| Cutting model | Hydraulic profile cutting |
