| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops | Work Pressure:: | 120 MPA---140 MPA |
|---|---|---|---|
| After-sales Service Provided:: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support | Warranty: | 2 Years |
| Voltage: | 380V/50HZ 3Phase | Shaft Material:: | 40Cr |
| Certification: | CE、BV、ISO | Speed: | 10-12/min |
| Profile Dimension(Web*Flange*Lip):: | 89mm*38mm*9mm |

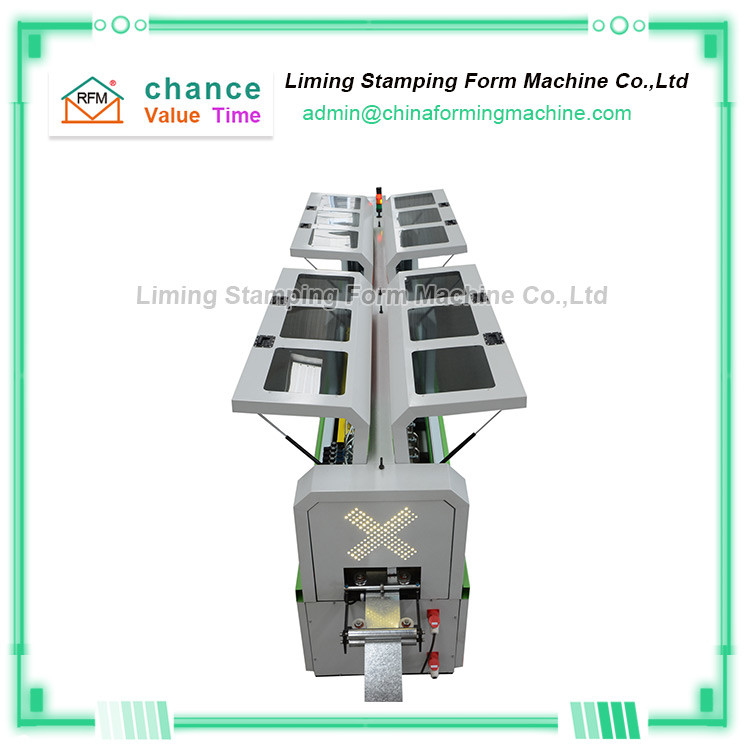

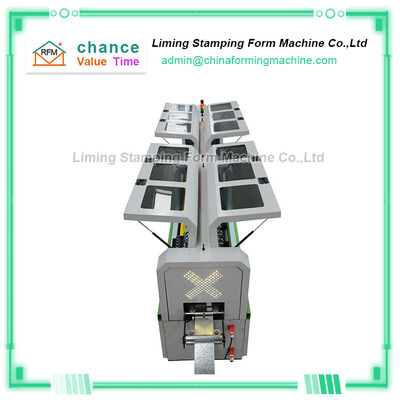

Durable Light Steel Frame Villa Keel Forming Machine
The durable light steel frame villa keel forming machine is a new product launched by our company in 2020
The durable light steel frame villa keel forming machine is the first to efficiently and stably produce double roll paper C89/C91.
The durable light steel frame villa keel forming machine realizes time-saving assembly, convenient management, and fast assembly speed.
The assembly efficiency of the durable light steel frame villa keel forming machine is increased by 50%
Technical parameters of Durable Light Steel Frame Villa Keel Forming Machine
| No. | Durable light steel frame villa keel forming machine | |
| 1 | Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
| 2 | Thickness of coil sheet | 0.2-0.6mm |
| 3 | Coil width | as customer's profile drawing requirement |
| 4 | Effective width | as customer's profile drawing requirement |
| 5 | Material of main frame | welded by 600mm steel plate |
| 6 | Diameter of Soild shaft | 40mm, high grade 45# steel |
| 7 | Roller | Cr12, quenched and tempered treatment, |
| hard chrome plated 0.05-0.07mm | ||
| 8 | Thickness of middle plate | Memorial archway |
| 9 | Forming station | 12 rows |
| 10 | Drive type | Gear |
| 11 | Power of main motor | 4.0 kw Shanghai, with reducer |
| 12 | Servo motor | 1.5KW |
| 13 | Forming speed | About 0-25m/min |
| 14 | Hydraulic pump station | 5.5 kw, 40# hydraulic oil |
| 15 | PLC | Delta(TaiWan) |
| 16 | Material of razor blades | Cr 12, quenching 58-62℃ |
| 17 | Frequency converter | It has the advantage of slowing down before cutting, to ensure the |
| length accuracy ±1mm, far better than industrial standard ±3mm. | ||
| 18 | Switch | CHNT |
| 19 | Frequency changer | SAJ |
