| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-lLGS26 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Rolling Thinckness:: | 0.8-.1.2mm | After Warranty Service:: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
|---|---|---|---|
| Key Selling Points:: | High-accuracy | Warranty Of Core Components:: | 2 Years |
| Material Thickness:: | 0.75-1.2mm | Design System:: | Australia Vertex BD |
| Certification: | CE、BV、ISO | Feature: | Low Energy Consumption |
| Usage: | Building | ||
| Highlight: | Steel Framing Keel Forming Machine,BV Keel Roll Forming Machine,T0.75mm Keel Roll Forming Machine |
||

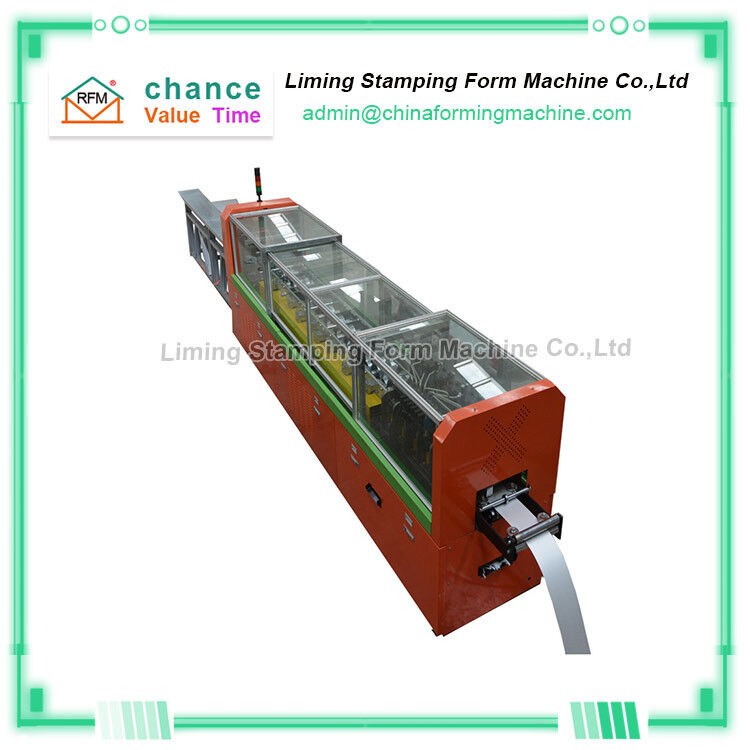

Stable Light Steel Frame Villa Keel Forming Machine
How to operate the foundation of the "stabilized light steel frame villa keel forming machine"?
1. Does the "stable light steel frame villa keel forming machine" need to lay the foundation?
1. Brick-concrete houses are to lay the foundation at first. The foundation is the foundation of the house. If the foundation is not well done, then due to the unstable foundation, the houses built on this foundation will be prone to various quality and safety problems, so even the "stable light steel frame villa keel forming machine" cannot be ignored. It is a new type of structure, and it needs a good foundation.
2. "Stable light steel frame villa keel forming machine" is a house built with light steel structural accessories, which needs to be customized by the factory, and its structural accessories are relatively light, thin and small. During the construction process, it will reach the bottom of the light steel. The construction of structural attachments will not be carried out directly in the soil. After all, the solidity of the soil cannot be guaranteed. Therefore, the construction of light steel villas requires a fixed foundation to complete the construction of the house. Therefore, the "stable light steel frame" villa keel forming machine" also needs to lay the foundation.
After tamping the backfill, a 250-micron polyethylene plastic film will be used as a moisture-proof layer to lay the structural foundation of the "stable light steel frame villa keel forming machine".
Technical parameters of Stable Light Steel Frame Villa Keel Forming Machine
| Size | 3700*800*1100mm |
| Weight | 2800KGS |
| Main Servo Motor Power | 5.5KW |
| Hydraulic Motor Power | 5.5KW |
| Forming Steps | 10+2steps for reshaping |
| Processing Speed | 25-30m/min |
| Voltage | 380V/50HZ/3PH |
| Lip of C Profile | 10mm |
| Tolerence Of Forming | 0.75mm |
| Forming Thickness | 0.7-1.2mm |
| Height | 38mm |
| Width | 89mm |
